Multi-Functions Steel Rule Auto Bender Machine

(ABM-832C2) Multi-Functions Steel Rule Auto Bender Machine

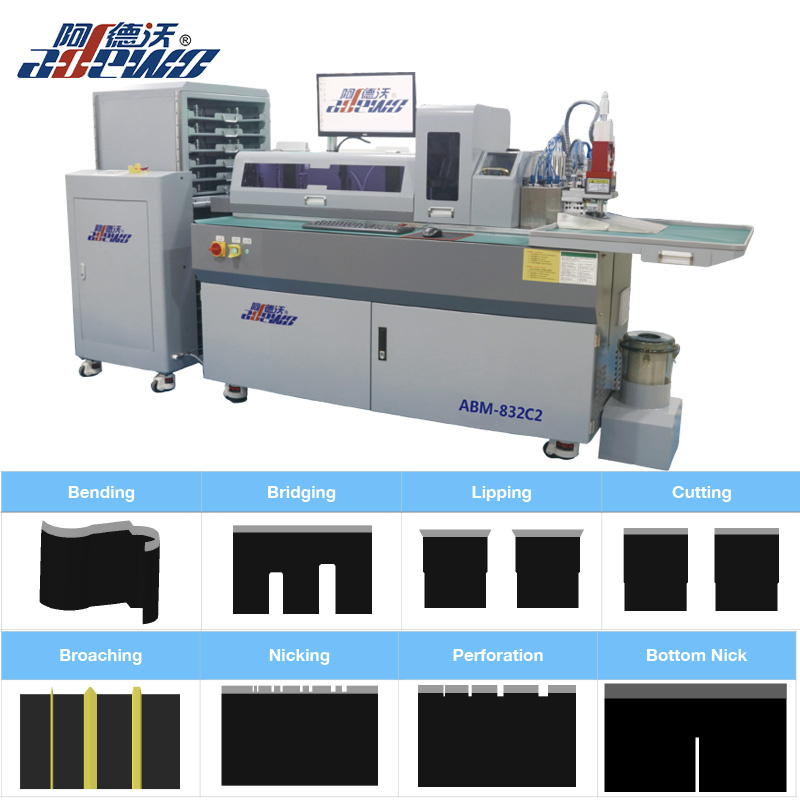

Picture of (ABM-832C2)Multi-Functions Steel Rule Auto Bender Machine for reference:

Product Features:

1.Bending and cutting in one,more safety of cutting. High efficiency of bending and cutting.

2.Bottom Nick function for choice,improves the flatness of die board.

3.Multi-Nicking size for choice, minimum 0.2mm, the width and depth can be setting through software.

4.Multi-Punch tool for choice:Lipping, Mold Cut, Bridge, Hole or Perforation, independent tool, easy to replace.

5.Multi-Broaching&Nicking for choice,wide and narrow broaching, suitable for high end die making.

6.Double clamps, screw guide feeding continuously, improves work efficiency.

7.Pro Model - 2pt&3pt in one, no need to replace bending tool for different thickness; flatness adjustable of different hardness cutting rule.

Technical Parameters of(ABM-832C2) Multi-Functions Steel Rule Auto Bender Machine

Supported rule thickness(mm)	0.45/0.53/0.71/1.05mm (1/1.5/2/3pt)
Supported rule height(mm)	8-32mm
Bridge height	15mm&18mm adjustable
Bridge width	Over 5mm any sizes available. (Can be customized)
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.03mm
Bending flatness	±0.2mm
Functions	Broaching,Bending,Bridge,Mold Cut,Flat Cut,Lipping,Nicking
Optional function	Hole,Perforation,Bottom Nick
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8MPa
Power supply	Single Phase AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	548KG
Overall dimension	3100x800x1600mm(LxWxH)
H.S. Code	8462230000

FAQ:

1.What’t difference between 832A2&832B2&832C2?
Different in functions, other features same.

2.What’s price term?

(1)FOB Shenzhen China
(2)CIF
(3)DDP

3. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

4.What about lead time?
7-10 working days.

5.How about installation and training of The Latest Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at sale@tempestmachinery.com

6.Any spare tools are included of The Latest Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
