Multi Functions Steel Rule Auto Bender Machine

(ABM-832D) Multi Functions Steel Rule Auto Bender Machine (Muti Broach, Nick)

As the professional manufacture, we would like to provide you high quality Multi Functions Auto Bender Machine with Grannite Table.

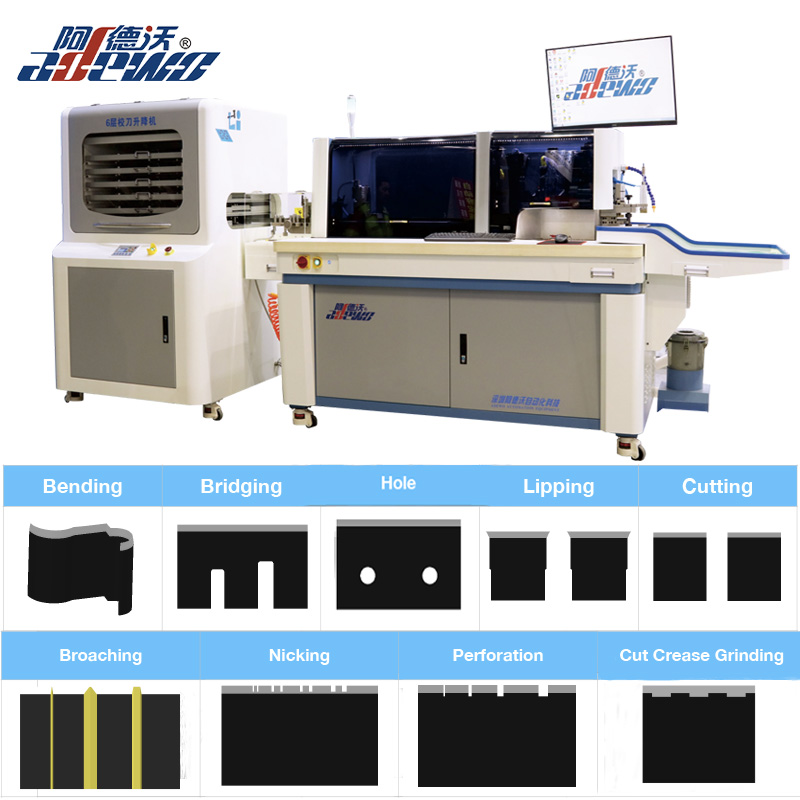

Picture of (ABM-832D) Multi Functions Steel Rule Auto Bender Machine for reference(Muti Broach,Nick):

Product Features:

1. Marble table: High rigidity and good stability of marble table.Ensure the processing accuracy of the dies;

2. Feeding method:Linear motor feeding mode is different from the traditional mode, which has high feeding accuracy and fast feeding speed;

3. Multiple sets broaching:Two sets or three sets for choice, which meet different requirements of broaching.

4.Six sets punch tools: Including Perforation, Bridge, two sets Lipping& Cutting tool which can use for twodifferent edge angle cutting rule, bridge height adjustable automatically.

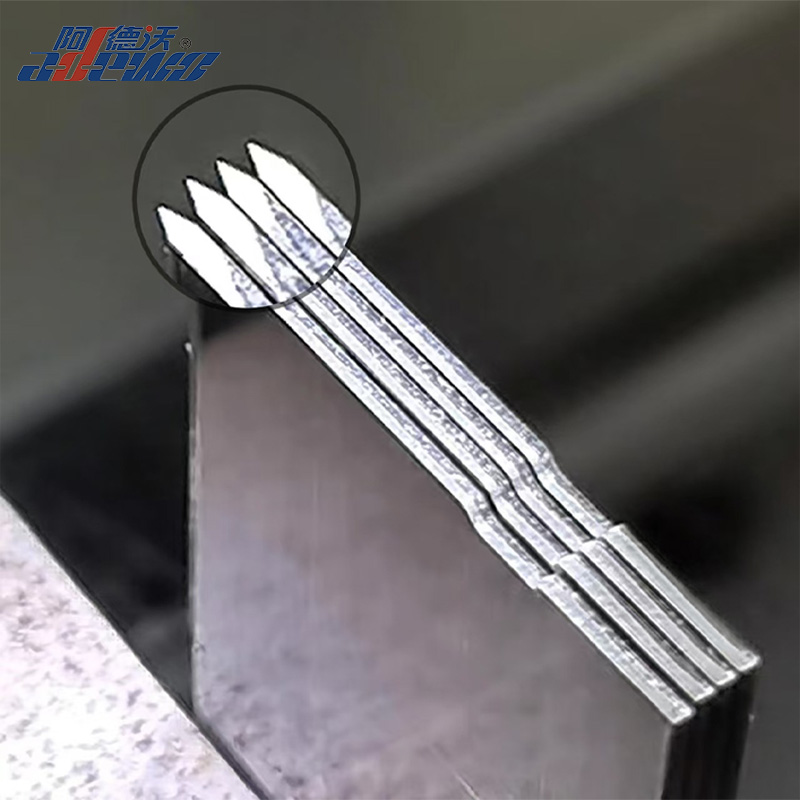

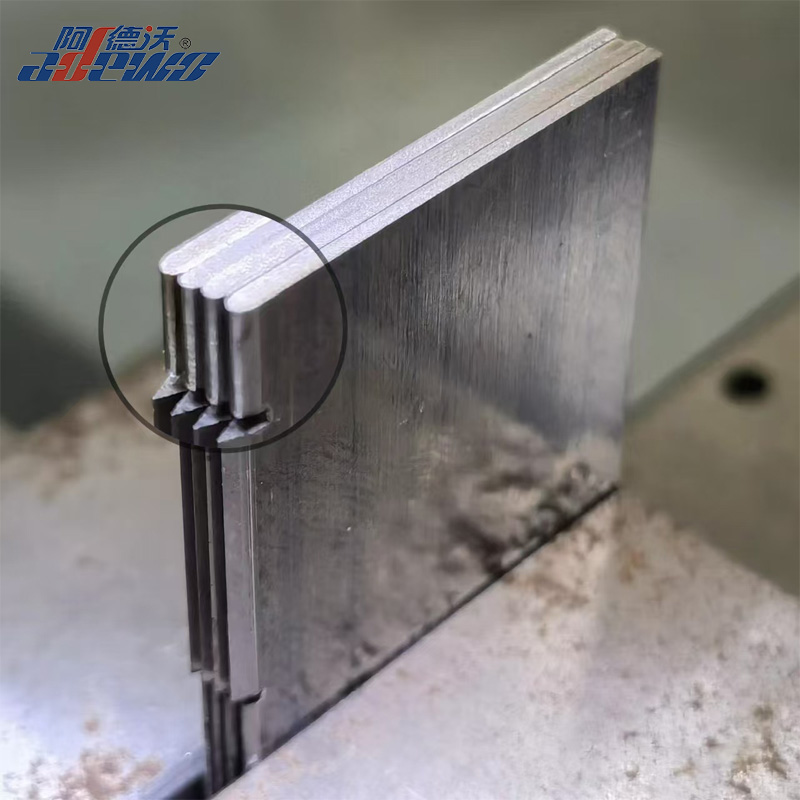

5.New Multi-Nicking saw blades: Five different specifications nicking saw blades in one machine, which meetdifferent Nicking requirement. New Function-Grinding: Rule edge grinding after perforation or cut crease, which can be remove burrs ofcutting rule and make more smoother of paper die cutting. Side grinding to make cutting rule precise joint.Rule Conner Grinding special for Sandwich Dies.

6.Scissors set:Cutting direction recognize automatically by program.

Technical Parameters of(ABM-832D) Multi-Functions Steel Rule Auto Bender Machine(Muti Broach,Nick)

Supported rule thickness(mm)	0.71mm(2pt)
Supported rule height(mm)	23.80mm
Front Min. bending size	1.5MM
Back Min. cutting size	1.0MM
Feeding precision	±0.02mm
Bending flatness	0.2mm
Functions	Broaching,Bending,Bridge,Perforation,Nicking,Lipping,Cutting,Hole
New function	Cut creasing Edge Grinding, Rule Side Grinding,Conner Grinding, Sandwich Die Small Lipping
Broaching set	Double set Broaching/Three set Broaching
Optimal pattern format	DXF,DWG
Air supply	0.4-0.8mpa
Power supply	AC220V,13.6A,50-60Hz
Machine total power	3KW
Weight	1170KG
Overall dimension	3700x970x1520mm(LxWxH)
H.S. Code	8462230000

FAQ:

1.What’s price term?

(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time?
7-10 working days.

4.How about installation and training of The Latest Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.

Our technical service is always available at sale@tempestmachinery.com

 5.Any spare tools are included of The Latest Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
