(ABM-860C6) Blister Die Cutting Mould Auto Bender with Countersunk Hole included functions：Bending,Bridge,Nicking,Perforation,Lipping and Cutting. Supported steel rule thickness 0.71,1.05mm,height 23.80-60mm. China TP has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
(ABM-860C6)Blister Die Cutting Mould Auto Bender with Countersunk Hole

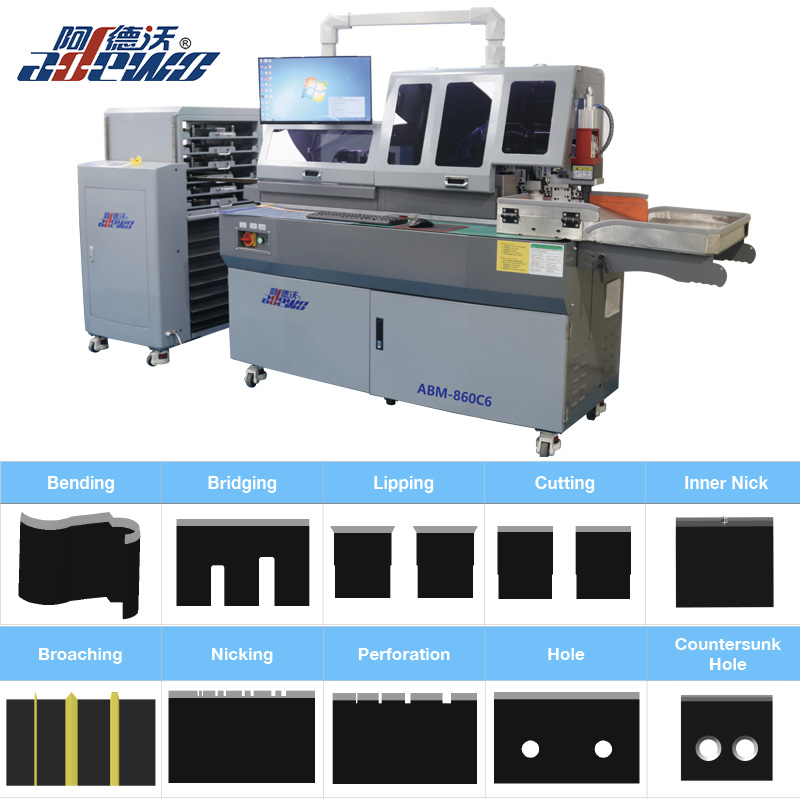

Picture of (ABM-860C6) Blister Die Cutting Mould Auto Bender with Countersunk Hole for reference:
1.Bending and Cutting in one tool, no need hold the rule by hand, more safety of cutting. High efficiency of bending and cutting;
2.Multi functions block: including Bridge, Lipping, Mold Cut, Hole/Perforation;
3.Specially developed for the blister dies, countersunk hole of both side automatically, continues Nicking;
4.Double set Broaching, wide and narrow broaching avaiable for both side; Minimum Nicking 0.2mm;
5.Double clamp, continuous screw quide feeding, improves work efficiency.
|
Supported rule thickness(mm) |
0.71,1.05mm (2pt&3pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. bending angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Mold Cut,Plane Cut, Hole,Countersunk Hole,Inner Nick |
|
Optional Functions |
Double Set Broaching(110°&150°), V Broaching |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
670KG |
|
Overall dimension |
3000x950x1680mm(LxWxH) |
|
H.S. Code |
8462230000 |
