600 Watts Steel and Plywood Die Making Laser Cutting Machine

600 Watts Steel and Plywood Die Making Laser Cutting Machine

These are related to the 600 Watts Steel & Plywood Die Making Laser Cutting Machine news, in which you can learn about the updated information in 600 Watts Steel & Plywood Die Making Laser Cutting Machine, to help you better understand and expand 600 Watts Steel & Plywood Die Making Laser Cutting Machine market. Because the market for 600 Watts Steel & Plywood Die Making Laser Cutting Machine is evolving and changing, so we recommend that you collect our website, and we will show you the latest news on a regular basis.We exported our products to more than 30 countries with strong technical support, good quality and services.

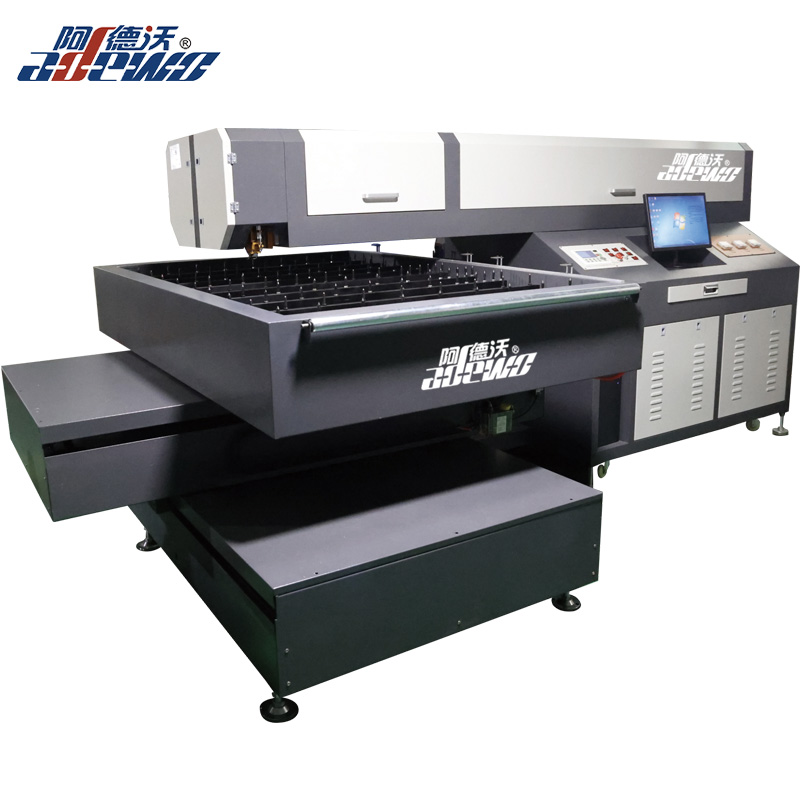

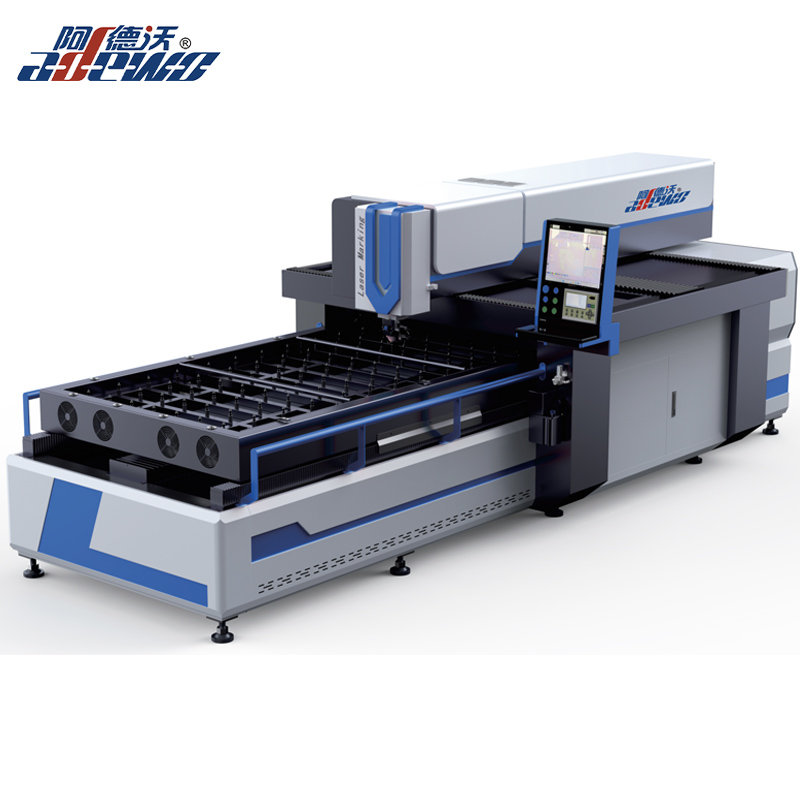

Picture of (ADW-LC600) 600 watts Steel & Plywood Die Making Laser Cutting Machine for reference:

Product Features:

1.Laser head fixed, table moves, stable of cutting.

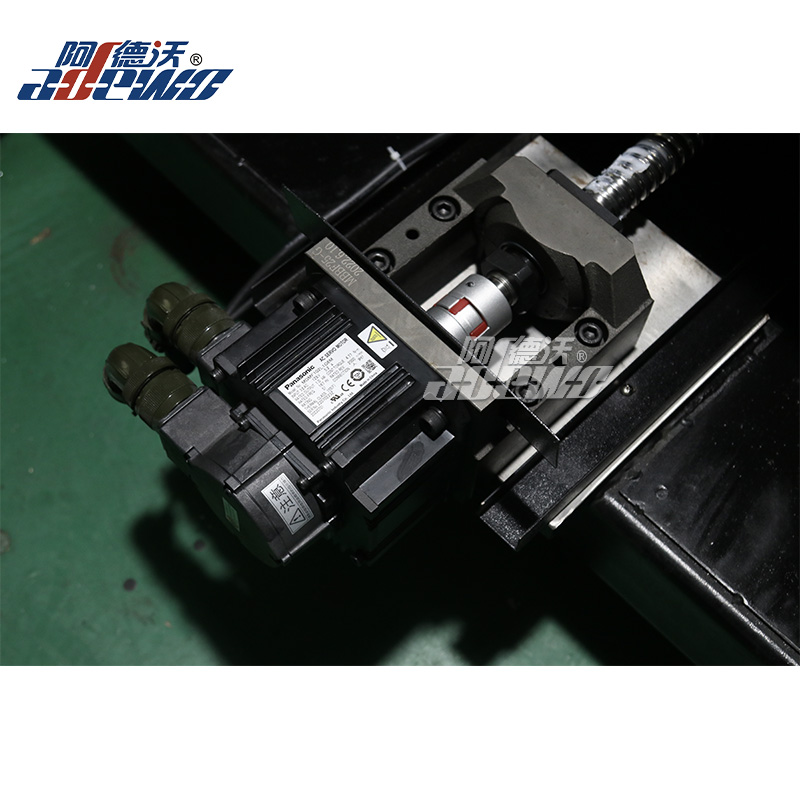

2.lmported screw drive, more durable and high accuracy.

3.Cross structure, stable of working for long term.

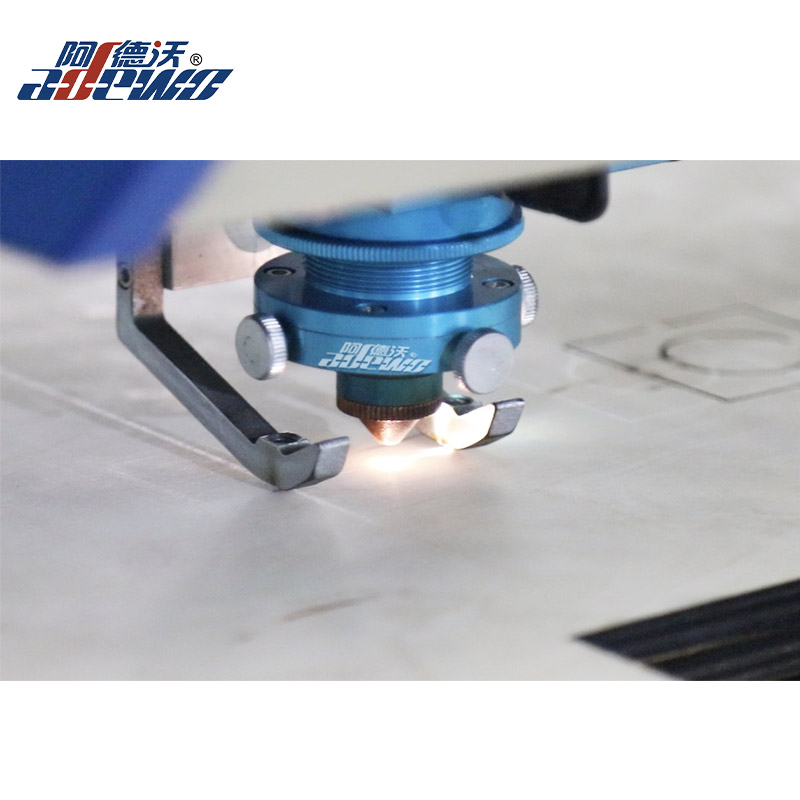

4.Auto follow cutting system, cutting once time for different thickness.

5.Easy to replace and clean of mirror and lens.

Technical Parameters of 600 watts Steel & Plywood Die Making Laser Cutting Machine

Model No.	ADW-LC600
Laser power	600W Single head
Working area	Width 1200mm x Length1800mm
Driving style	Fixed laser line path(the laser head fixed, the material body moved)
Cutting speed	600watts:40-45 meters/hour,18mm plywood
Cutting materials and thickness	6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.
Cooling water temperature	5℃-30℃

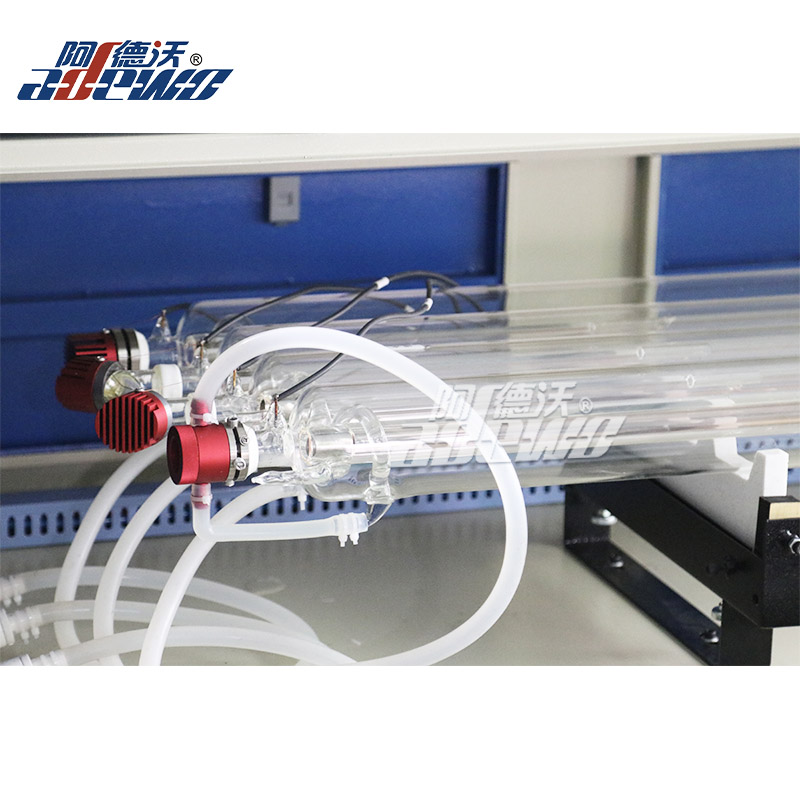

Laser type	CO2 sealed of glass laser

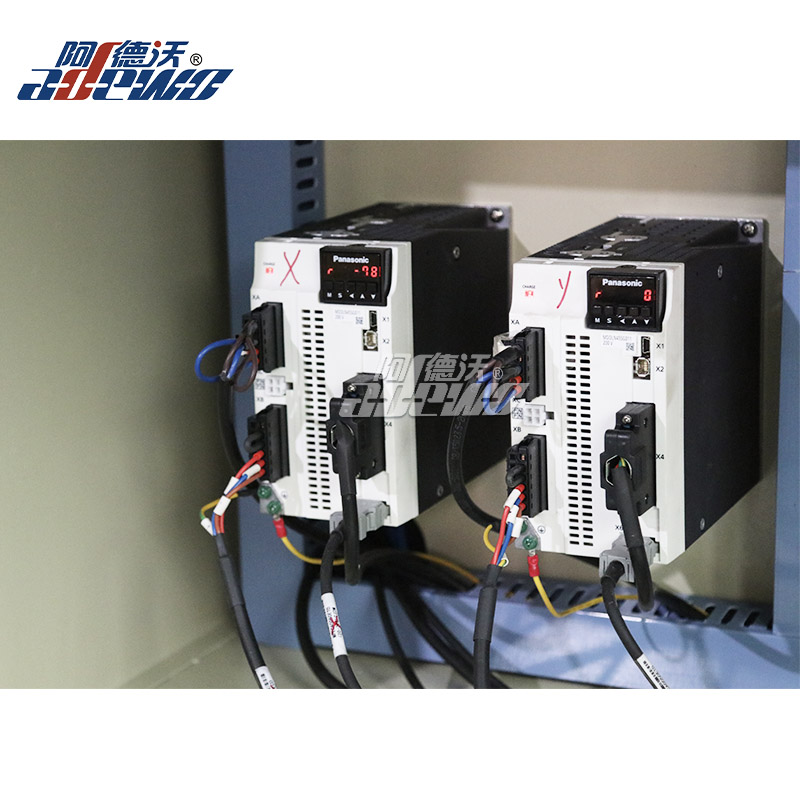

Driving system	Servo motor system
Blade thickness	0.45mm,0.71mm,1.05mm,1.07mm…ect
Cutting precision	±0.05mm
Figure format	AL, DST, PLT, BMP, DXF
Supporting software	CorelDraw,AutoCAD,photoshop
Cooling system	Water cooling
Operating temperature	1℃~40℃

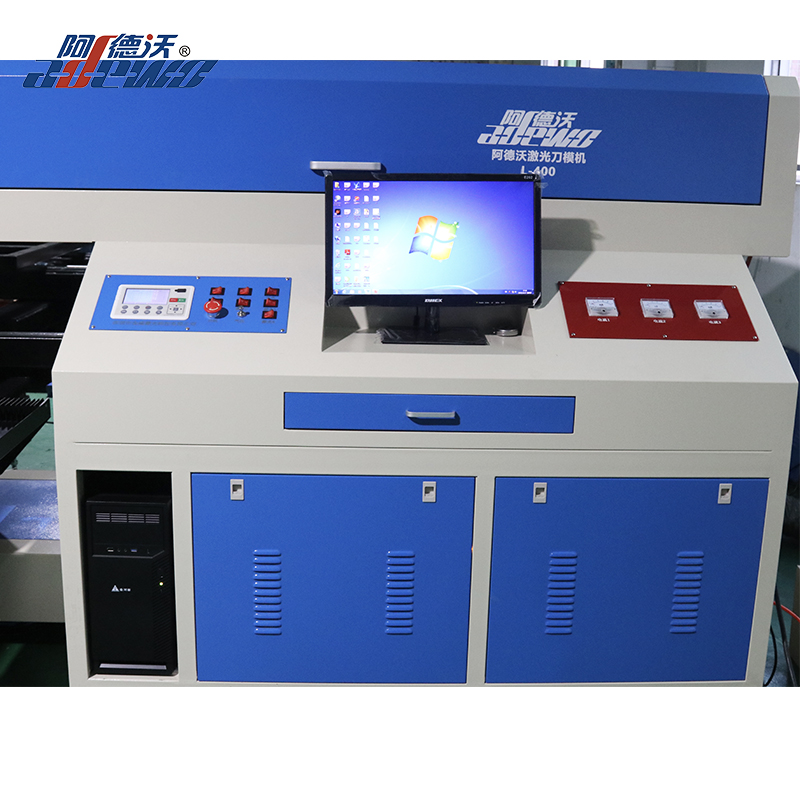

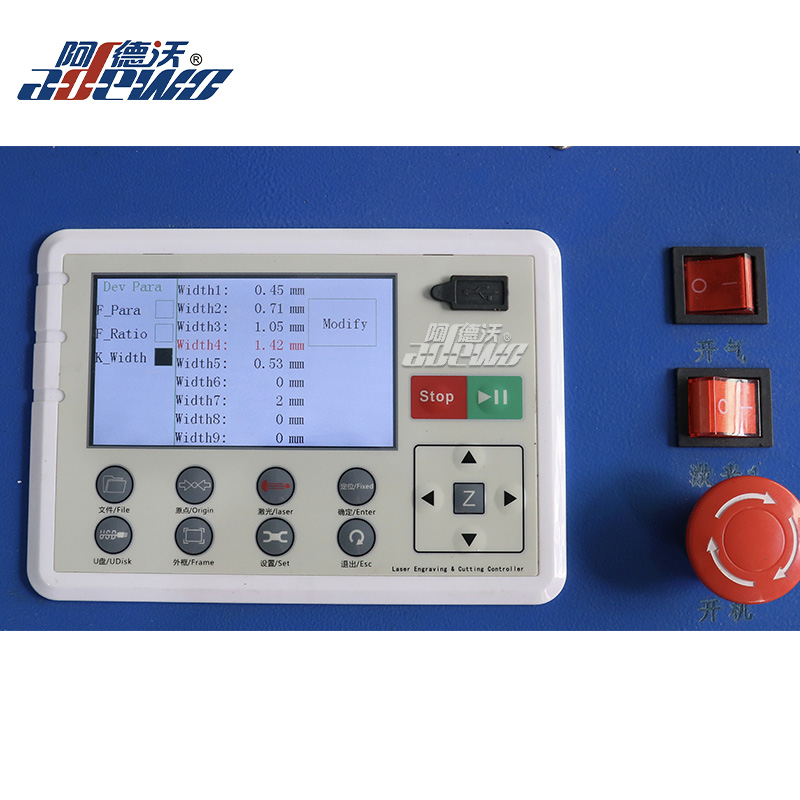

Numerical control panel	LCD screen,Light-touched key-press off-line condition
EMS memory	Attached 32MB memory, can work under off-line condition
Assistant equipments(Free)	Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter
Power supply	Single Phase 220V,50Hz/60Hz 10A
Total power	5KW
Machine size（stand still）	L4120xW2800xH1530mm
Machine size（working）	L4320xW3800xH1530mm
Machine weight	1800kg
H.S. Code	8456110090

FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 600 watts Steel & Plywood Die Making Laser Cutting Machine?
10-15 working days.

4.How about installation and training of 600 watts Steel & Plywood Die Making Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at sale@tempestmachinery.com

5.What’s the cutting speed of this 600 watts Steel & Plywood Die Making Laser Cutting Machine?
40–45 meters/hour 18mm plywood by 600 watts Die Making Laser Cutting Machine ; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
