(ADW-LC600)600 watts Gantry Type Die Boards Die Making Laser Cutting Machine with fast cutting speed, around 40–45 meters/hour 18mm plywood; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise. China TP has been successful for many domestic and foreign enterprises to provide advanced Laser Cutting machine,Auto Bender Machine,Creasing Cutting Machine, technical support and excellent after sales service.

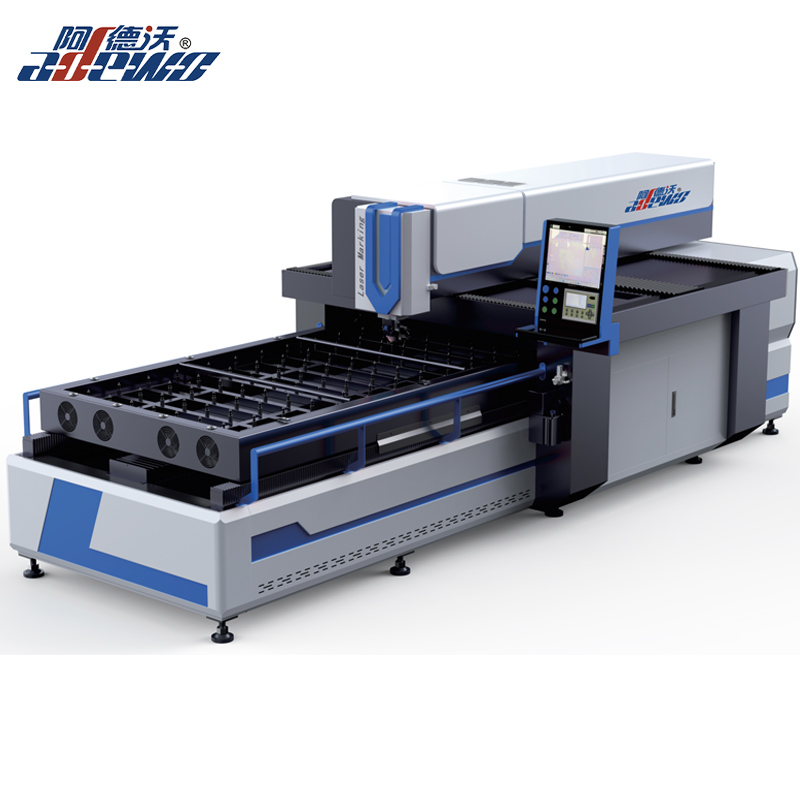

600 watts Gantry Type Die Boards Die Making Laser Cutting Machine
As a professional high quality 600 Watts Gantry Type Die Boards Die Making Laser Cutting Machine manufacture, you can rest assured to buy 600 Watts Gantry Type Die Boards Die Making Laser Cutting Machine from our factory and we will offer you the best after-sale service and timely delivery.The company has always been oriented by customer demand and respect for talents, constantly improve their strength, improve service level and quality. With many European and American, Asian and domestic customers, we have established long-term good relationship with common progress. Sincerely expect to join hands with you to create the future.
1.Constant optical path, improve the stability, and ensure the cutting gap uniform, more simple to install rule.
2.Easy operation; Automatic adjustment of cutting gap, 1pt,2pt,3pt,4pt cutting once time. The machine software is compatible with CAD, CDR and Al.
3.High quality of imported guide rail, precision ball screw and other main accessories to ensure thelonger life of the machine using.
4.Wide application:6-25mm plywood, acrylic, and less than 3mm steel (Need oxygen).
|
Model No. |
ADW-LC600 |
|
Laser power |
600W Single head |
|
Working area |
Width 1225mm x Length2440mm |
|
Driving style |
Laser head moved |
|
Cutting speed |
600watts:40-45 meters/hour,18mm plywood |
|
Cutting materials and thickness |
6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule. |
|
Cooling water temperature |
5℃-30℃ |
|

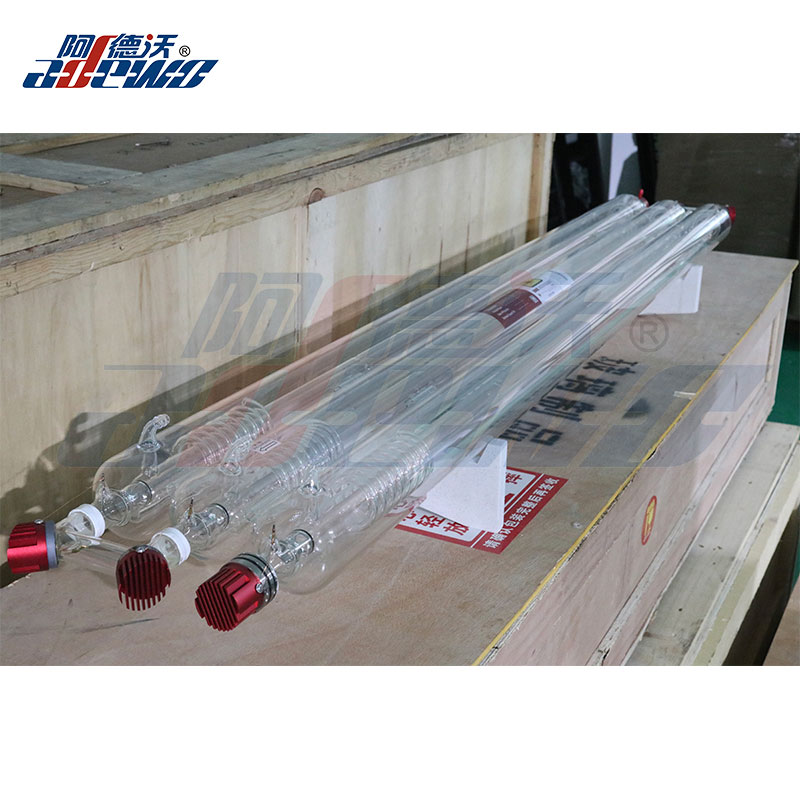

Laser type |
CO2 sealed of glass laser |
|
Driving system |
Servo motor system |
|
Blade thickness |
0.45mm,0.71mm,1.05mm,1.07mm…ect |
|
Cutting precision |
±0.05mm |
|
Figure format |
AL, DST, PLT, BMP, DXF |
|
Supporting software |
CorelDraw,AutoCAD,photoshop |
|
Cooling system |
Water cooling |
|
Operating temperature |
1℃~40℃ |
|
Numerical control panel |
LCD screen,Light-touched key-press off-line condition |
|
EMS memory |
Attached 32MB memory, can work under off-line condition |
|
Assistant equipments(Free) |
Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter |
|
Power supply |
Single Phase 220V,50Hz/60Hz 10A |
|
Total power |
5KW |
|
Machine size（stand still） |
L4120xW2800xH1530mm |
|
Machine size（working） |
L4320xW3880xH1530mm |
|
Machine weight |
1800kg |
|
H.S. Code |
8456110090 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of 600 watts Gantry Type Die Boards Die Making Laser Cutting Machine?
10-15 working days.
4.How about installation and training of 600 watts Gantry Type Die Boards Die Making Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com
