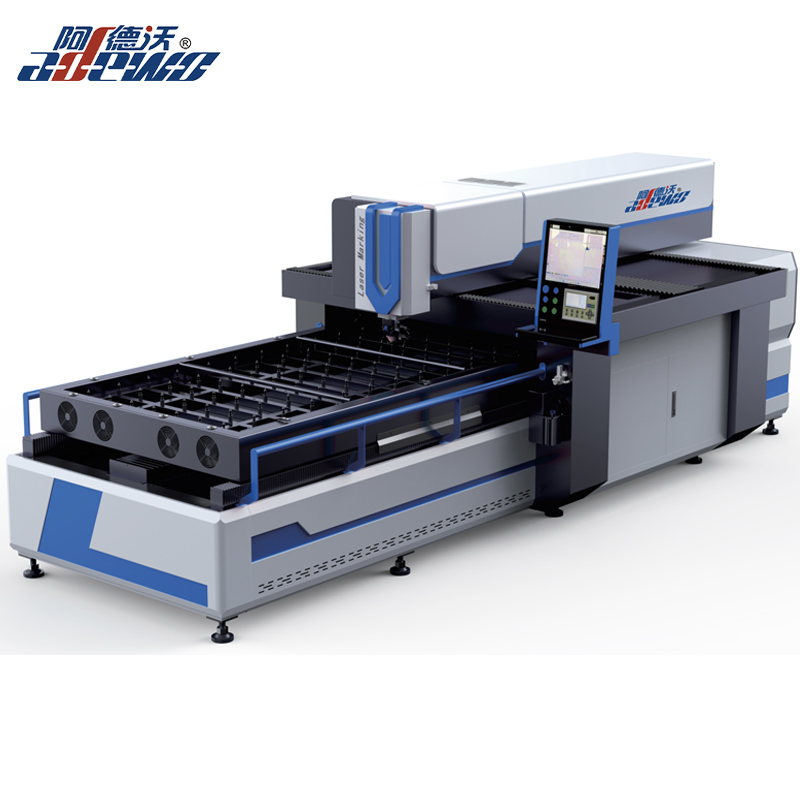

600 Watts Gantry Flat Dies Die Making Laser Cutting Machine

600 watts Gantry Flat Dies Die Making Laser Cutting Machine

High quality 600 Watts Gantry Flat Dies Die Making Laser Cutting Machine is offered by China manufacturer Shenzhen TP Automation Technology Co.,ltd.. Buy 600 Watts Gantry Flat Dies Die Making Laser Cutting Machine which is of high quality directly with low price. Welcome new and old customers to continue to cooperate with us to create a better future!

1.Product Features:

1.Constant optical path, improve the stability, and ensure the cutting gap uniform, more simple to install rule.

2.Easy operation; Automatic adjustment of cutting gap, 1pt,2pt,3pt,4pt cutting once time. The machine software is compatible with CAD, CDR and Al.

3.High quality of imported guide rail, precision ball screw and other main accessories to ensure thelonger life of the machine using.

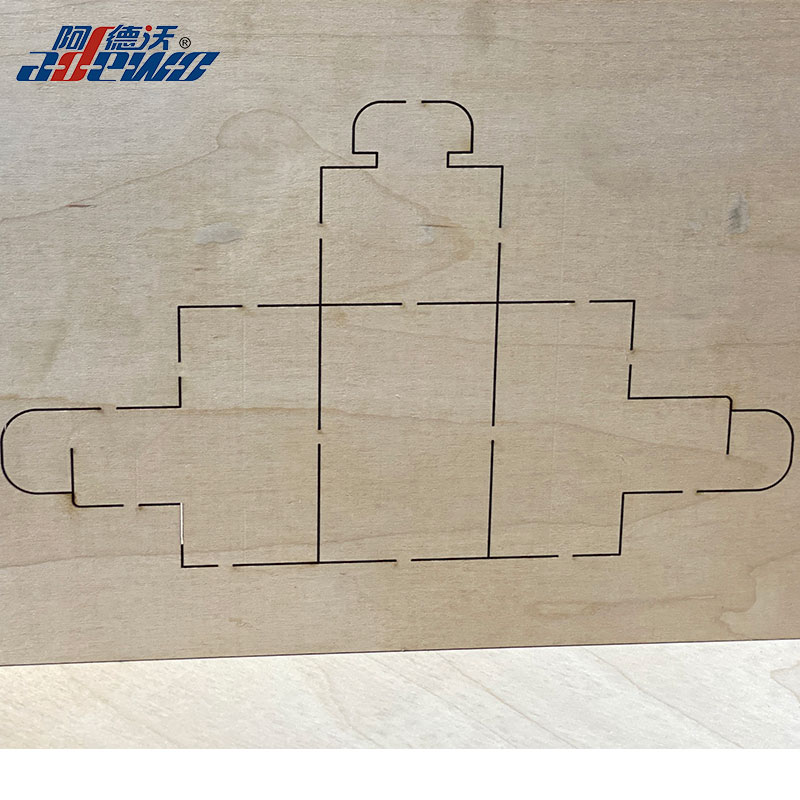

4.Wide application:6-25mm plywood, acrylic, and less than 3mm steel (Need oxygen).

2.Technical Parameters of 600 watts Gantry Flat Dies Die Making Laser Cutting Machine

Model No.	ADW-LC600
Laser power	600W Single head
Working area	Width 1225mm x Length 2440mm
Driving style	Laser head moved
Cutting speed	600watts:40-45 meters/hour,18mm plywood
Cutting materials and thickness	6-9-15-18-22mm plywood,PVC Board,Acrylics and Less than 3mm steel rule.
Cooling water temperature	5℃-30℃

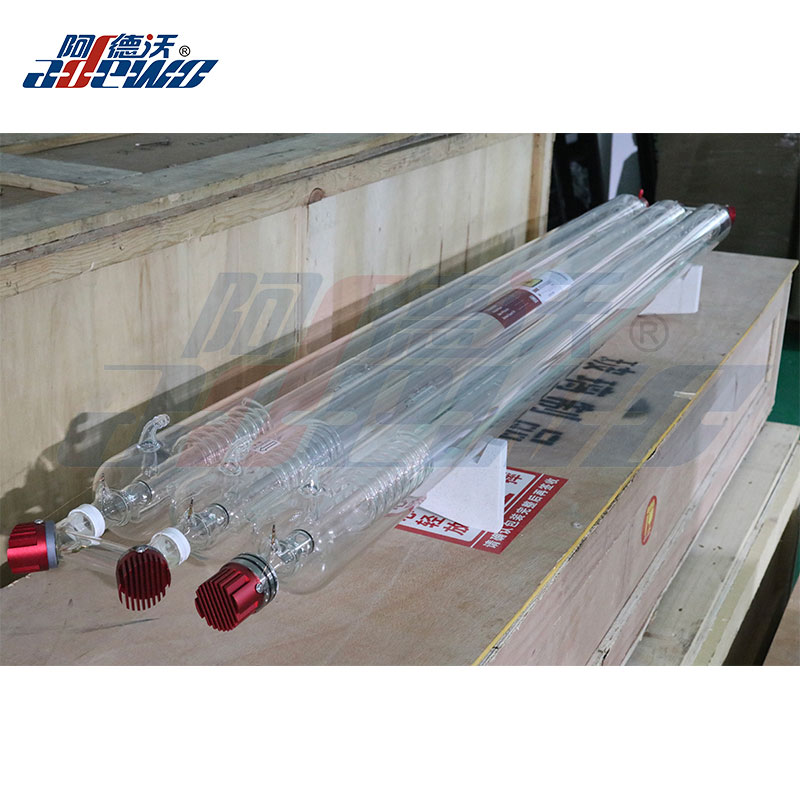

Laser type	CO2 sealed of glass laser
Driving system	Servo motor system
Blade thickness	0.45mm,0.71mm,1.05mm,1.07mm…ect
Cutting precision	±0.05mm
Figure format	AL, DST, PLT, BMP, DXF
Supporting software	CorelDraw,AutoCAD,photoshop
Cooling system	Water cooling
Operating temperature	1℃~40℃
Numerical control panel	LCD screen,Light-touched key-press off-line condition
EMS memory	Attached 32MB memory, can work under off-line condition
Assistant equipments(Free)	Industrial chiller ,Exhaust fans,Computer system,Compressed Air Filter
Power supply	Single Phase 220V,50Hz/60Hz 10A
Total power	5KW
Machine size（stand still）	L4120xW2800xH1530mm
Machine size（working）	L4320xW3880xH1530mm
Machine weight	1800kg
H.S. Code	8456110090

3.FAQ:

1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP

2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.

3.What about lead time of 600watts Gantry Flat Dies Die Making Laser Cutting Machine?
10-15 working days.

4.How about installation and training of 600watts Gantry Flat Dies Die Making Laser Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.

We provide remote support to customers all over the world.

Our technical service is always available at sale@tempestmachinery.com

5.What’s the cutting speed of this 600watts Gantry Flat Dies Die Making Laser Cutting Machine?
40–45 meters/hour 18mm plywood by 600watts Gantry Flat Dies Die Making Laser Cutting Machine ; High precision, cutting precision is +-0.05mm; Smooth cutting, CO2 CNC laser cutting; Lower noise.
