(ADW-WJ) Water Jet Rubber Strip Cutting Machine with fast cutting speed, high precision, smooth cutting and lower noise. China TP has been successful for many domestic and foreign enterprises to provide advanced Water Jet Rubber Strip Cutting Machine, Laser Cutting machine,Auto Bender Machine, Creasing Cutting Machine, technical support and excellent after sales service.
Shenzhen TP Automation Technology Co.,ltd. is China manufacturer & supplier who mainly produces European Manual Bridge Machine, Water Jet Rubber Strip Cutting Machine, Small Table Plywood Laser Cutting Machine, Die Boards Steel Rule Puller with many years of experience. Hope to build business relationship with you.

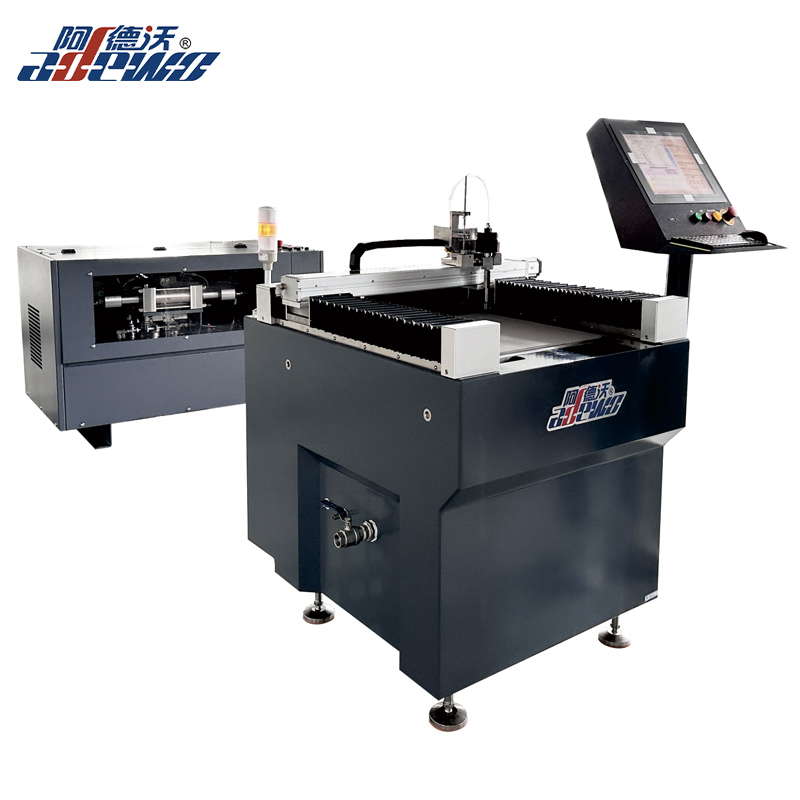

Picture of (ADW-WJ)Water Jet Rubber Strip Cutting Machine for reference:
1.Product Features:
1.Mineral casting body assures long term stability and accuracy;
2.Servo motor drive Dual-belt transmission structure;
3.Linear guiding system made by Stainless and aluminum extruded sections with high strucural rigidity;
4.Stainless steel honeycomb grid with long durability;
5.Professional rubber built and nest software impact;
6.Direct DXF file data drive cutting, transferred via network.
2.Technical Parameters of Water Jet Rubber Strip Cutting Machine
| X-Y cutting range | 510×510mm |
| Max cutting thickness | 60mm |
| Standard cutting speed | 5m/min |
| Max cutting speed | 30m/min |
| Cutting material | Rubber, Sponse |
| Power transmission and guiding system | Servo motors system |
| Driving and control | Servo motors system |
| Control Software | PRC |
| File format | DXF, PLF, ENG, G-code, CF2 |
|
High pressure pump |
Pump with major components imported |
|
Pump power and Max pressure |
7.5kw, 300Mpa |
|
Water Flow Rate |
>1L/min |
|
Cutting accuracy (Depend on the material texture and thickness) |
0.1~0.3mm |
| Positioning accuracy | <0.08mm |
|
Positioning speed |
30m/min |
| Laying on grid | Honey comb structure of stainless steel |
|
Air consumption |
0.6Mpa |
| Power supply | Three phase 380V, 50-60Hz |
|
Machine Dimension |
1486×1110×1402mm |
|
High pressure pump dimension |
1480×870×920mm |
|
Machine weight |
1100KGS |
| High pressure pump weight | 800KGS |
3.FAQ:
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time of Water Jet Rubber Strip Cutting Machine?
10-15 working days.
4.How about installation and training of Water Jet Rubber Strip Cutting Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com.
