ABM-832A2 The Latest Steel Rule Auto Bender Machine included functions：Bending,Bridge,Perforation,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. China TP has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.
The Latest Steel Rule Auto Bender Machine
With years of experience in production The Latest Steel Rule Auto Bender Machine, Shenzhen TP Automation Technology Co.,ltd. can supply a wide range of The Latest Steel Rule Auto Bender Machine. High quality The Latest Steel Rule Auto Bender Machine can meet many applications, if you need, please get our online timely service about The Latest Steel Rule Auto Bender Machine. In addition to the product list below, you can also customize your own unique The Latest Steel Rule Auto Bender Machine according to your specific needs.Due to our focused approach, timely delivery and ethical business policy, we have been able to gain tremendous success in this domain.

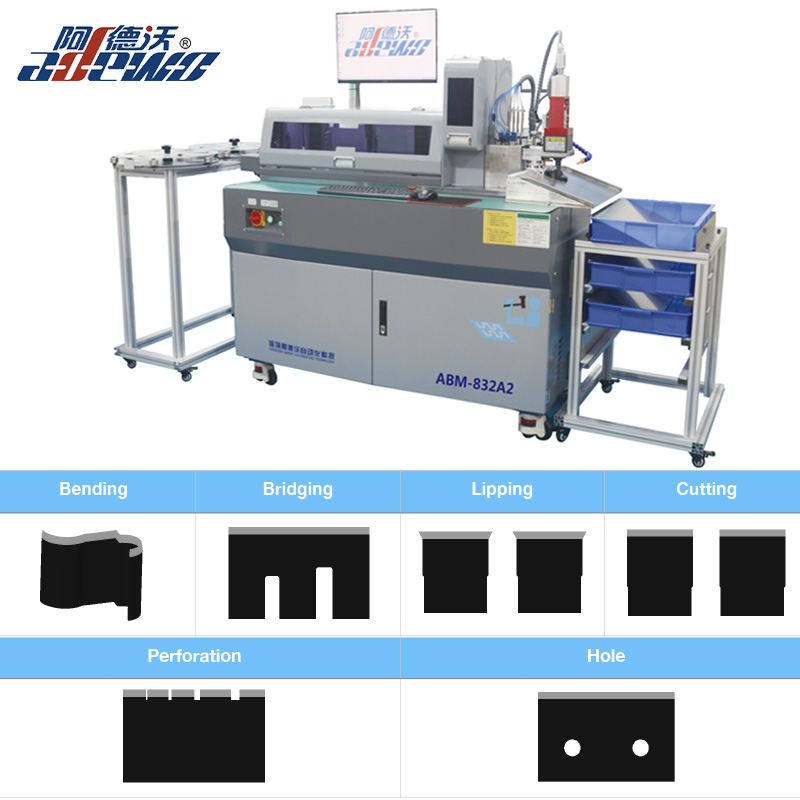

Picture of (ABM-832A2)The Latest Steel Rule Auto Bender Machine for reference:
1.Bending and cutting in one,more safety of cutting. High efficiency of bending and cutting.

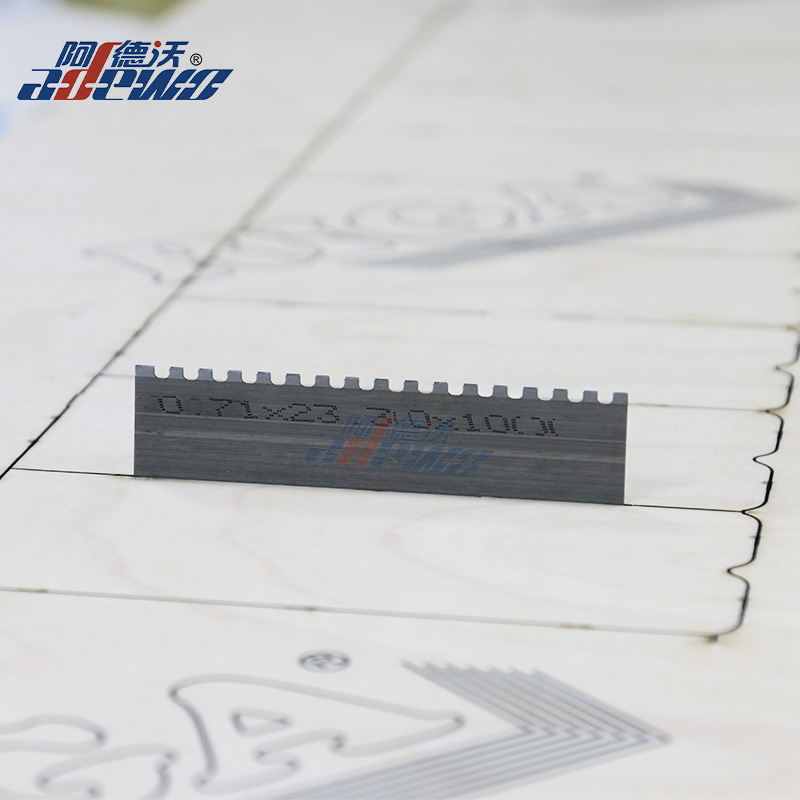

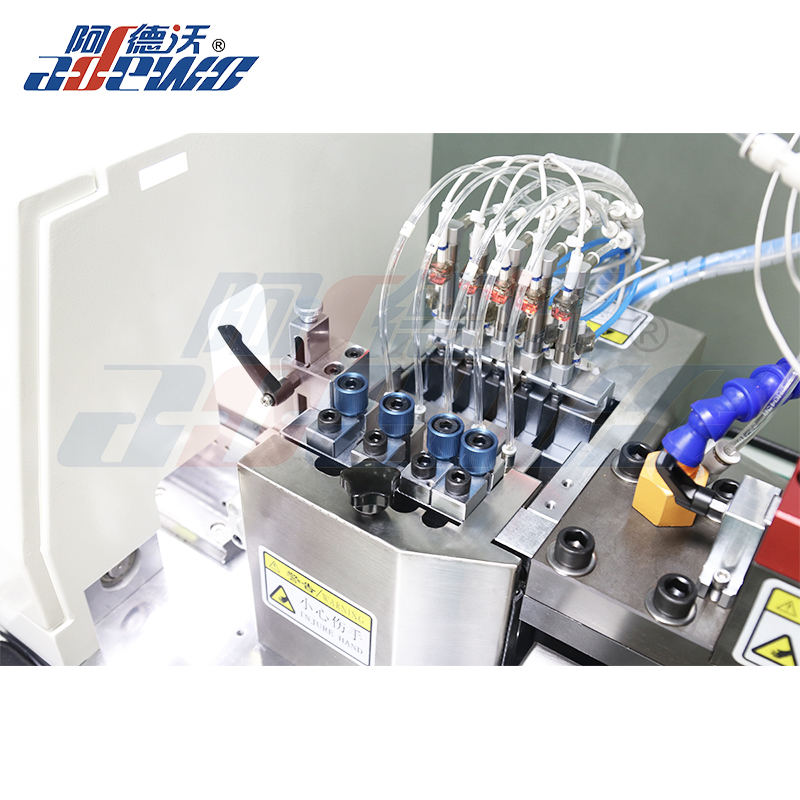

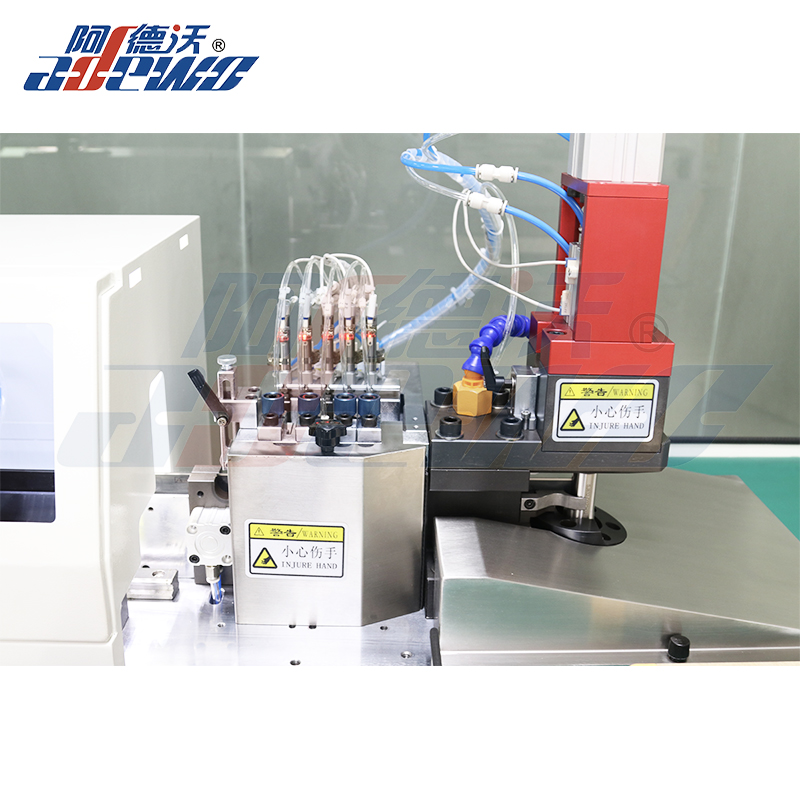

2.Multi-Punch tool for choice:Lipping, Mold Cut, Bridge, Hole or Perforation, independent tool, easy toreplace.

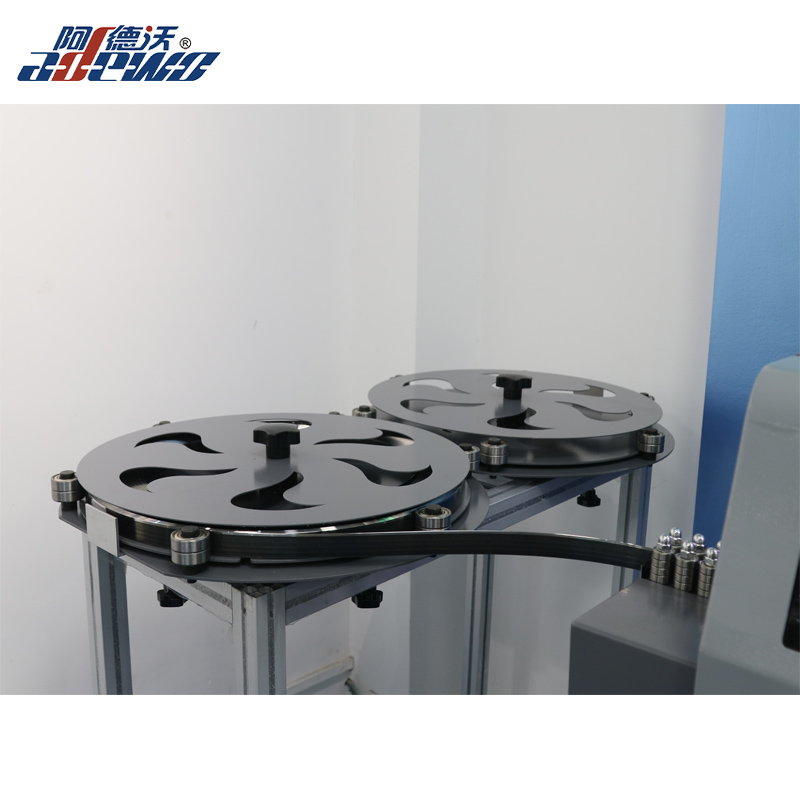

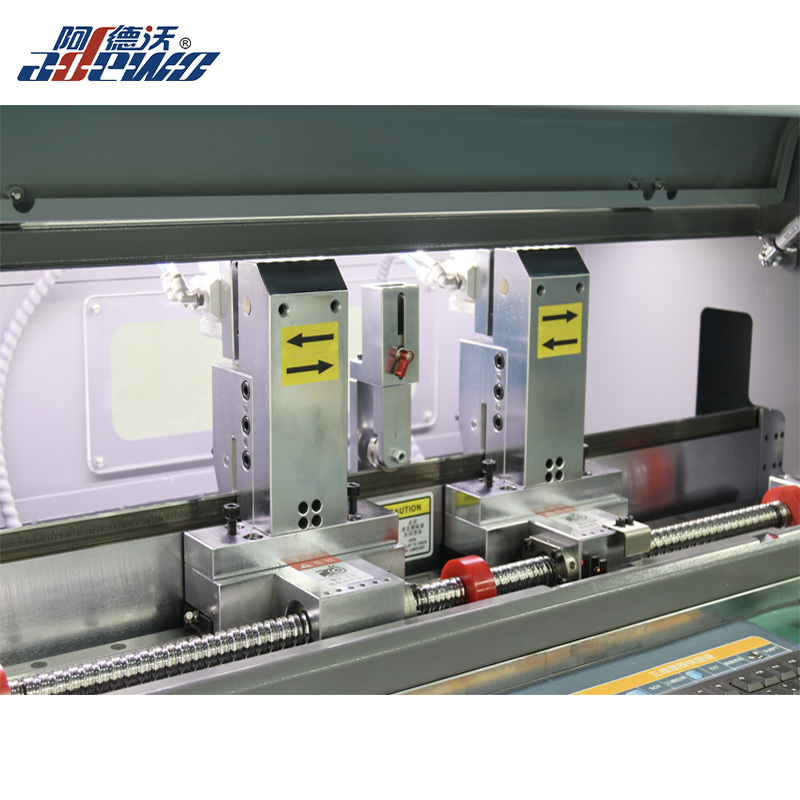

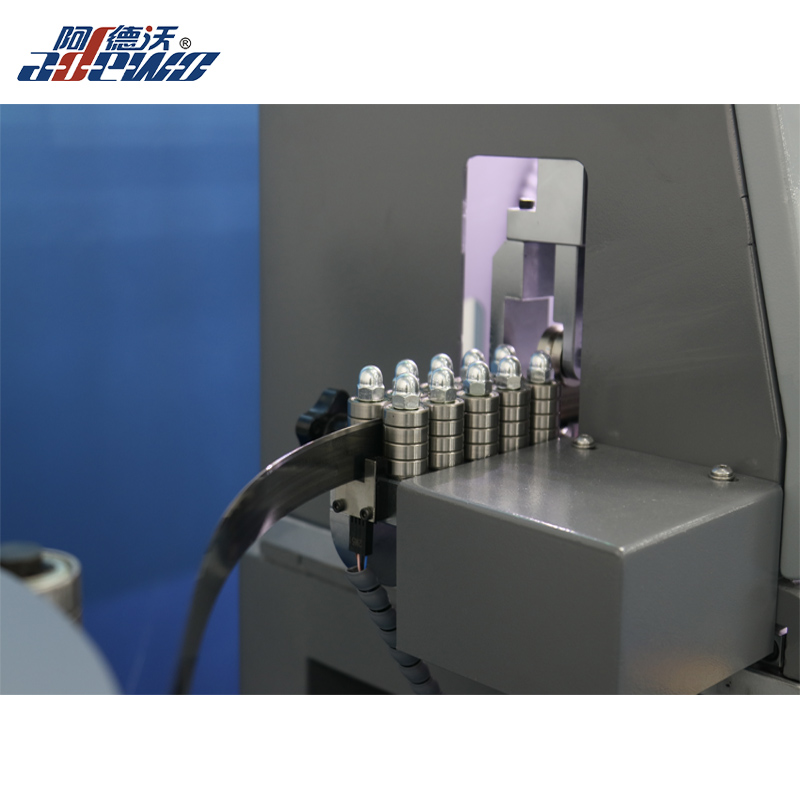

3.Double clamps,screw guide feeding continuously, improves work efficiency.
4.Smart software,easy to operate, multi language available.
|
Supported rule thickness(mm) |
0.45, 0.53, 0.71, 1.05mm |
|
Supported rule height(mm) |
8-32mm |
|
Bridge height |
18mm&15mm adjustable |
|
Bridge width |
Over 5mm any sizes available. |
|
Front Min. bending size |
1.5mm |
|
Back Min. cutting size |
1.0mm |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Lipping,Cutting |
|
Optional Functions |
Perforation/Hole |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|

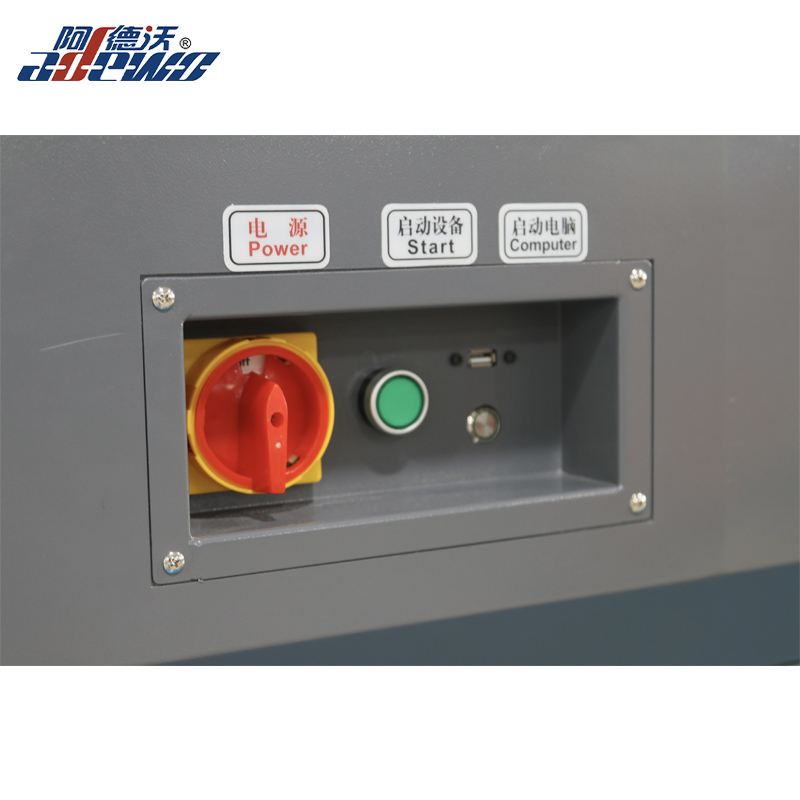

Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
528KG |
|
Overall dimension |
2850x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDU
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of The Latest Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com
5.Any spare tools are included of The Latest Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
