ABM—832C1 Multi-Functions Label Rule Auto Bending Machine included functions：Bending,Bridge,Broaching,Nicking,Perforation,Hole,Bottom Notch,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71mm,height 8-32mm. China TP has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
You can rest assured to buy Multi-Functions Label Rule Auto Bending Machine from our factory and we will offer you the best after-sale service and timely delivery.Our principle is “to achieve zero defects through continuous improvement, to satisfy our customers’ needs and expectations,to make commitments we fully understand and believe we can meet and to meet all commitments to customers on time. Products and services are the life of an enterprise. We have always attached great importance to product quality and after-sales tracking services. We strive to provide customers with satisfactory products and services through our own efforts. If you have questions about product use and functions, you can contact us 24 hours a day. We get in touch.

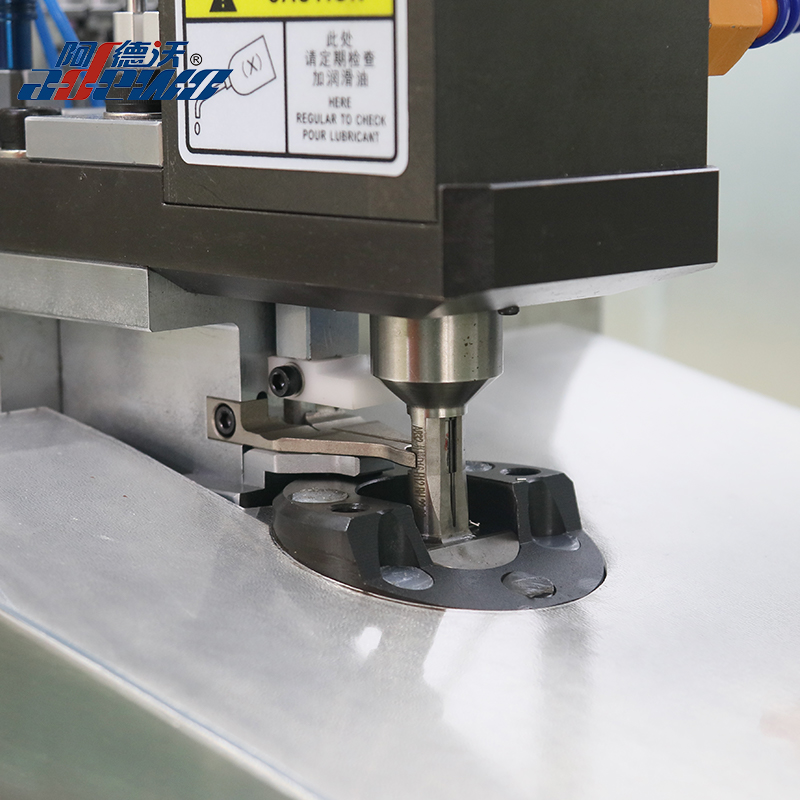

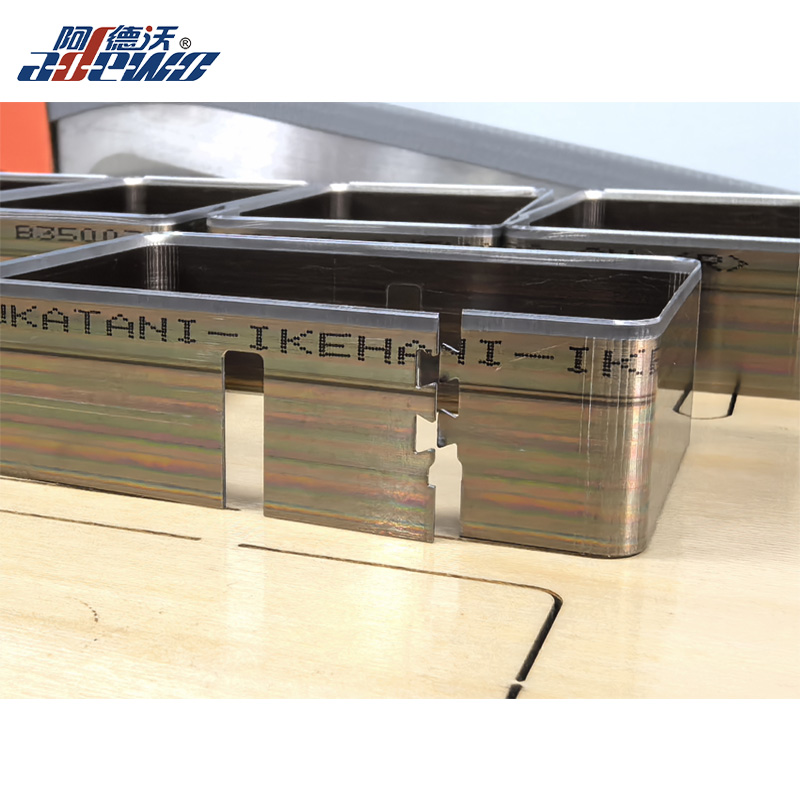

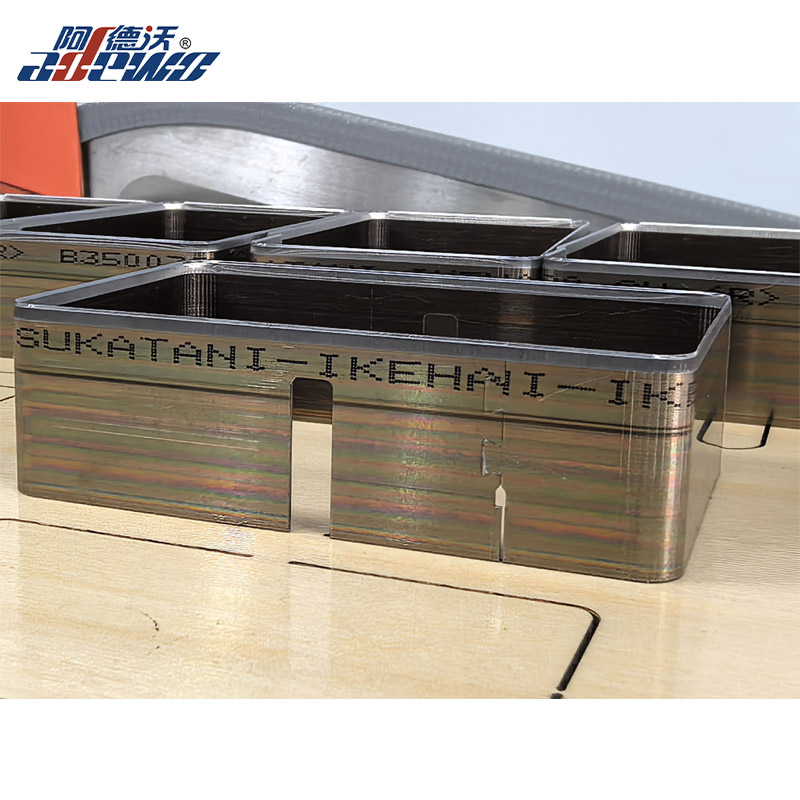

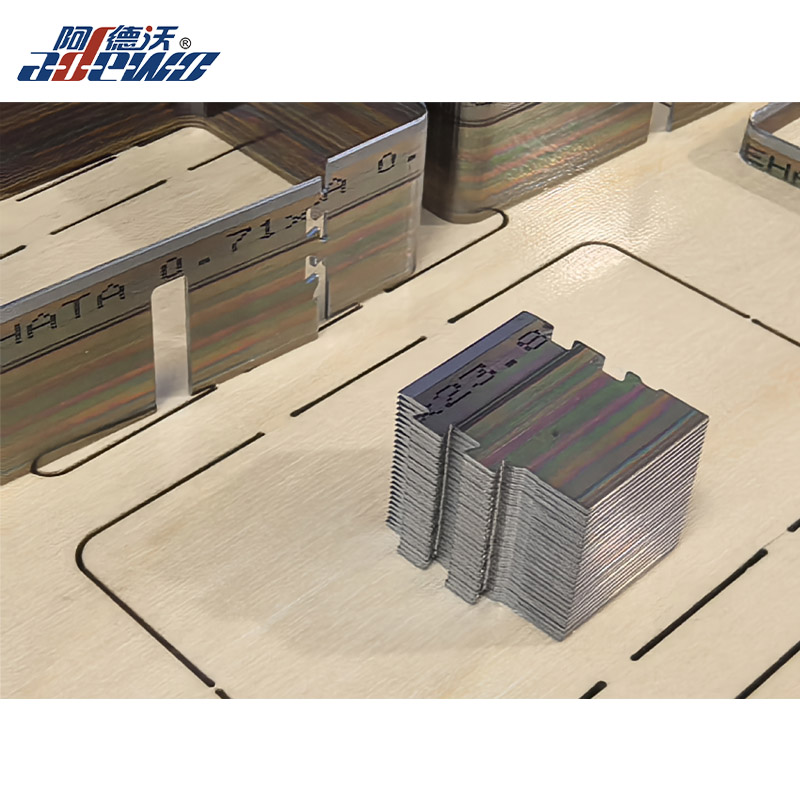

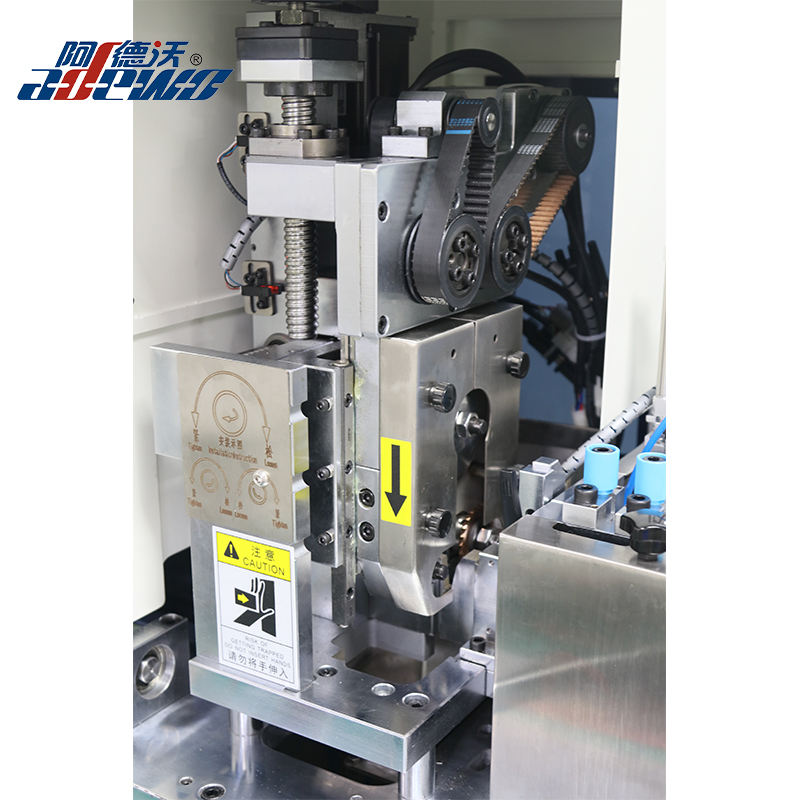

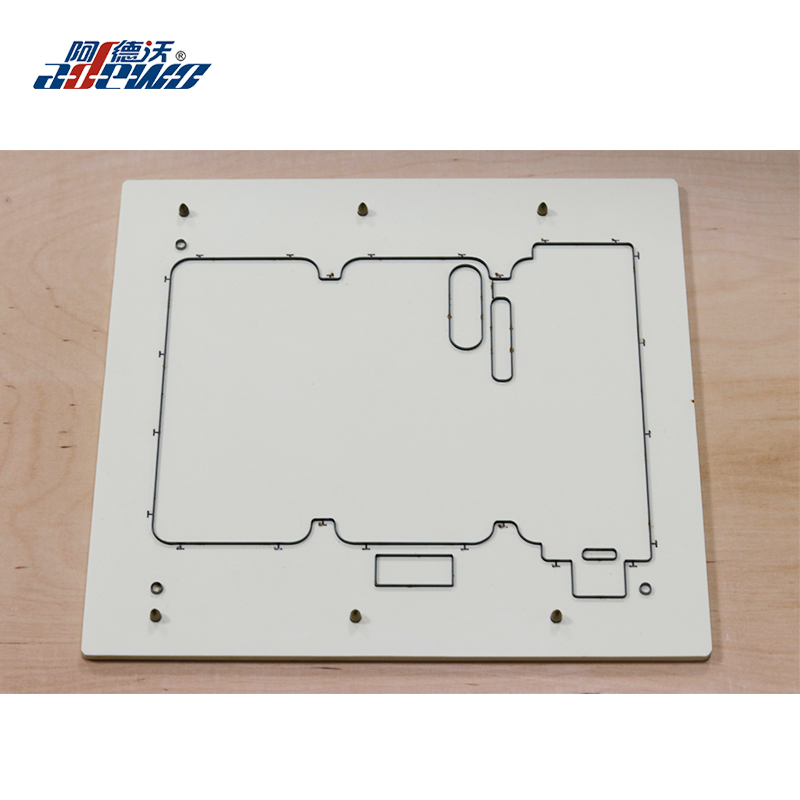

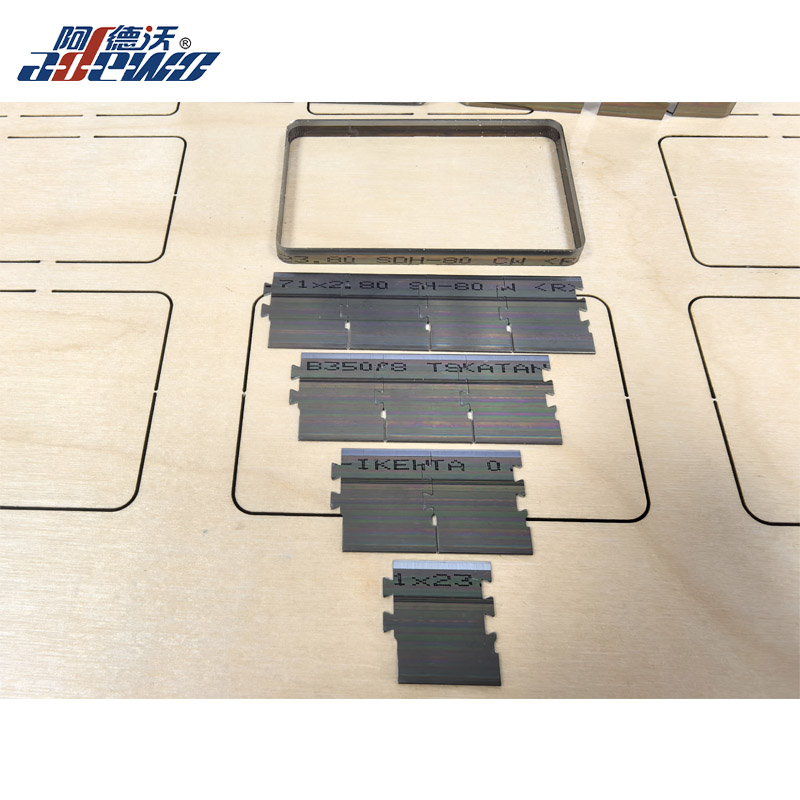

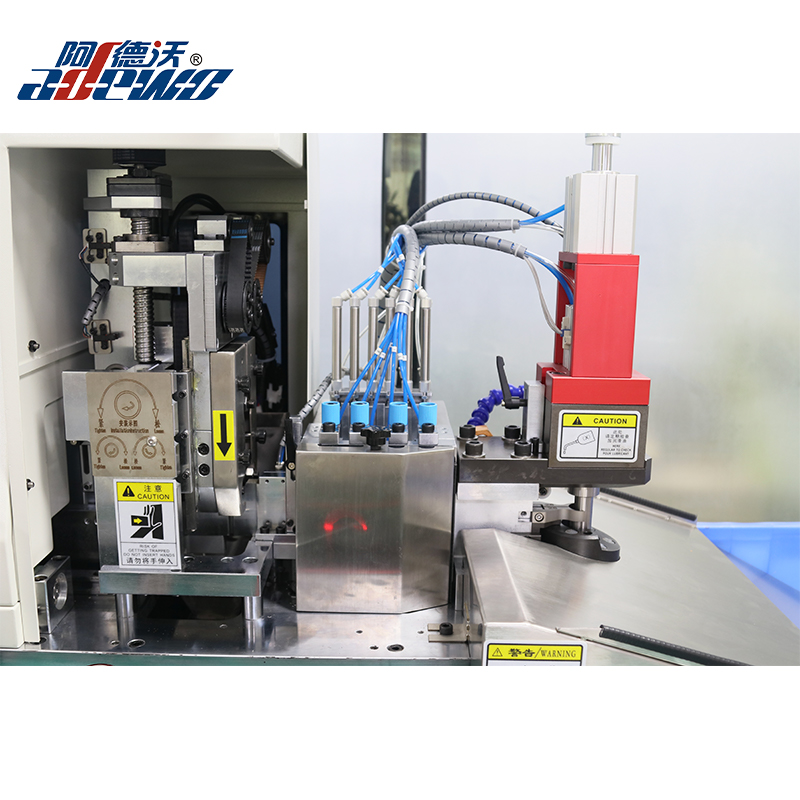

Picture of (ABM—832C1)Multi-Functions Label Rule Auto Bending Machine for reference:
1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2.Multi-Nicking size for choice,minimum 0.2mm, the width and depth can be setting through software
3.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation, independent tool, easy toreplace.
4.Single Double Broaching for choice,wide and narrow broaching, suitable for high end die making

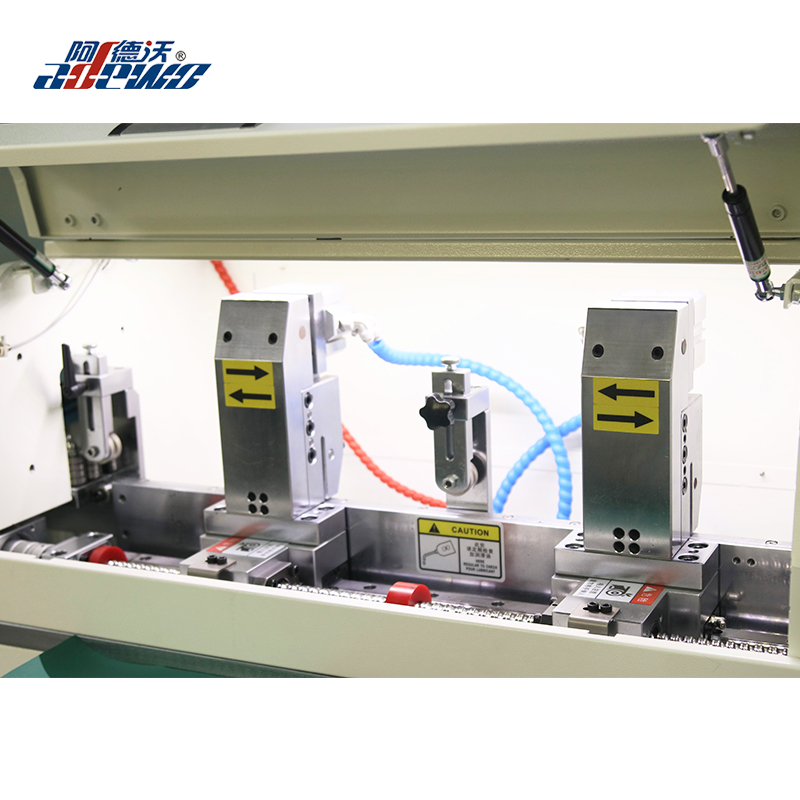

5.Double clamps,screw guide feeding continuously,improves work efficiency.
6.Pro Model - 2pt&3pt in one, no need to replace bending tool for different thickness; flatness adjustable of different hardness cutting rule.
7.Small footprint,save space,cost effective.
|
Supported Rule Thickness |
0.45, 0.53, 0.71mm |
|
Supported Rule Height |
8-32mm |
|
Front Min. Bending Size |
1.5mm |
|
Back Min. Bending Size |
1.0mm |
|
Feeding Precision |
±0.03mm |
|
Bending Flatness |
0.2mm |
|
Basic Functions |
Bending,Mold Cut, Lipping, Bridging,Hole,Plane Cut |
|
Optional Functions |
Broaching,Nicking,Bottom Notch,Perforation |
|
Broaching |
Single set Broaching/Double set Broaching can be selected |
|
Supported File Formats |
DXF, DWG |
|
Air Supply |
0.4-0.8MPa |
|
Power Supply |
AC220V, 13.6A, 50-60Hz |
|
Total Power |
3KW |
|
Overall Dimension |
2600*750*1600mm(LxWxH) |
|
Machine Weight |
480KG |
|
HS CODE |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of Multi-Functions Label Rule Auto Bending Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com
5.Any spare tools are included of Multi-Functions Label Rule Auto Bending Machine?
Yes,the new order machine with free spare tools.
