(ABM-832C3) Multi-Functions Label Rule Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Hole,Lipping, Mold Cut and Flat Cut. Supported steel rule thickness 0.45,height 8-12mm. TP has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.

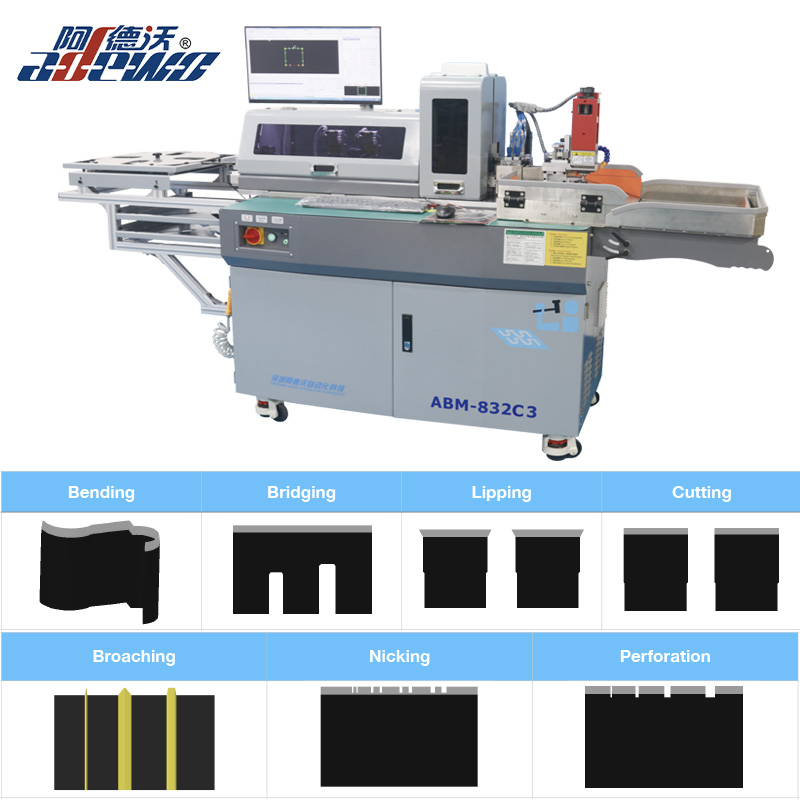

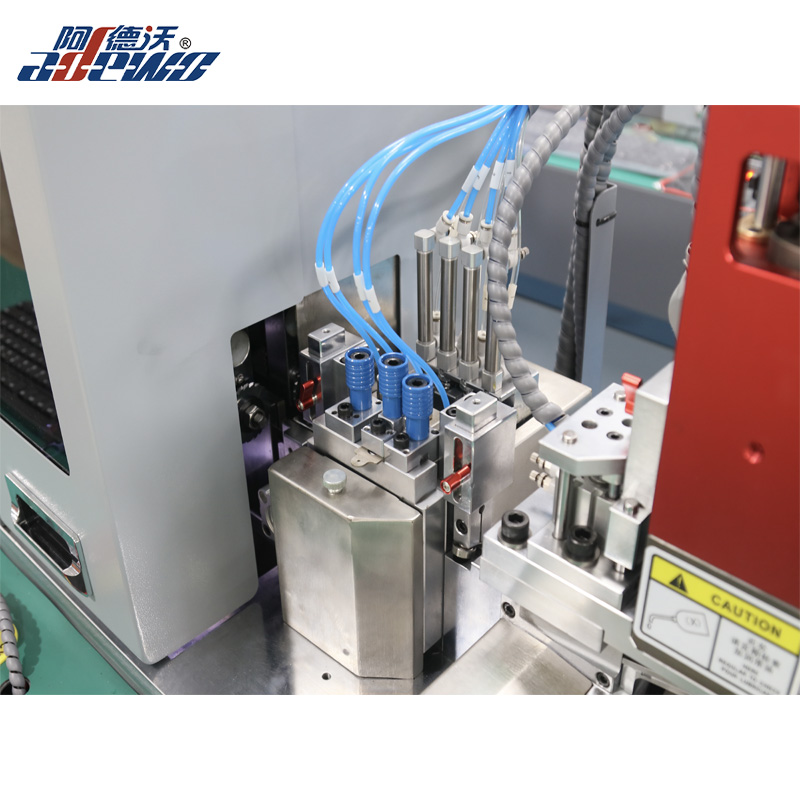

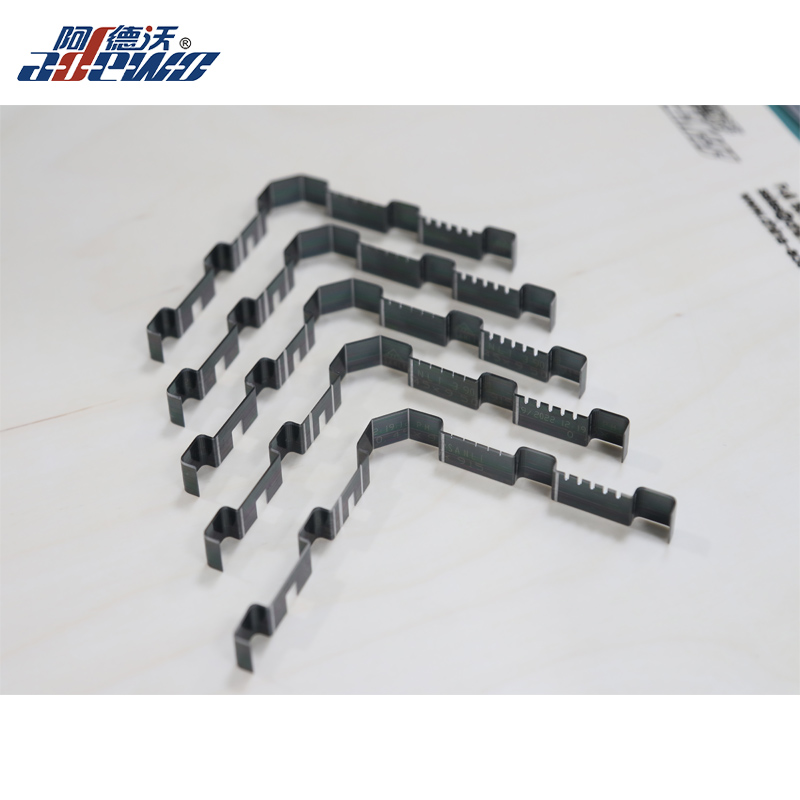

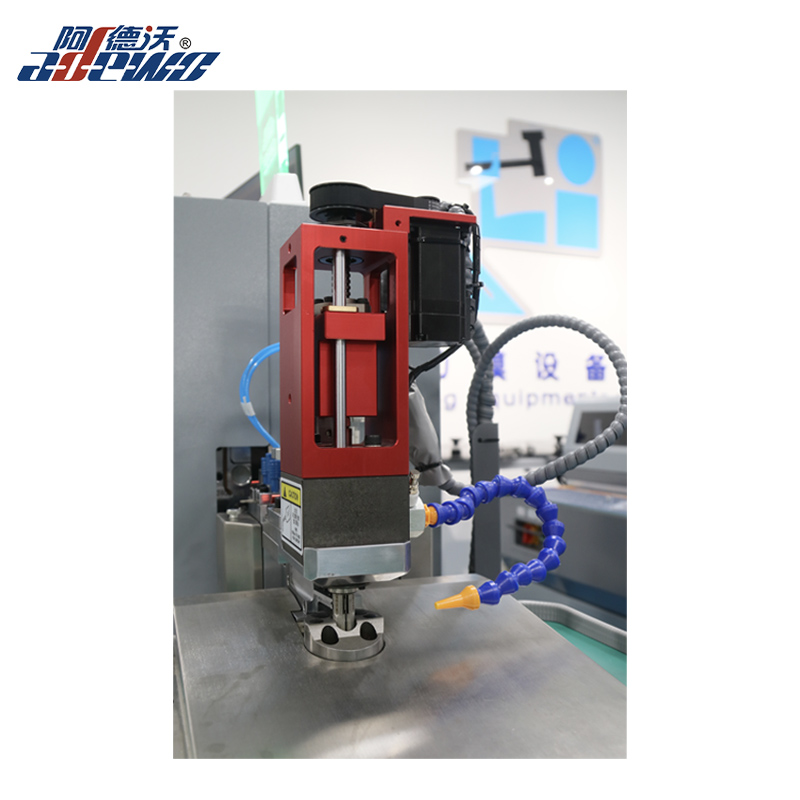

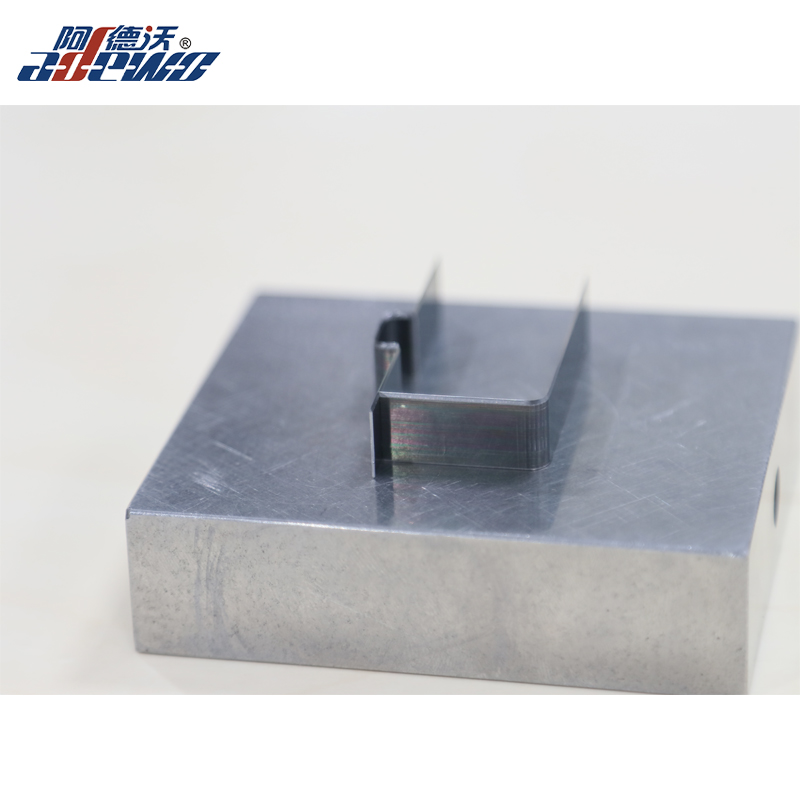

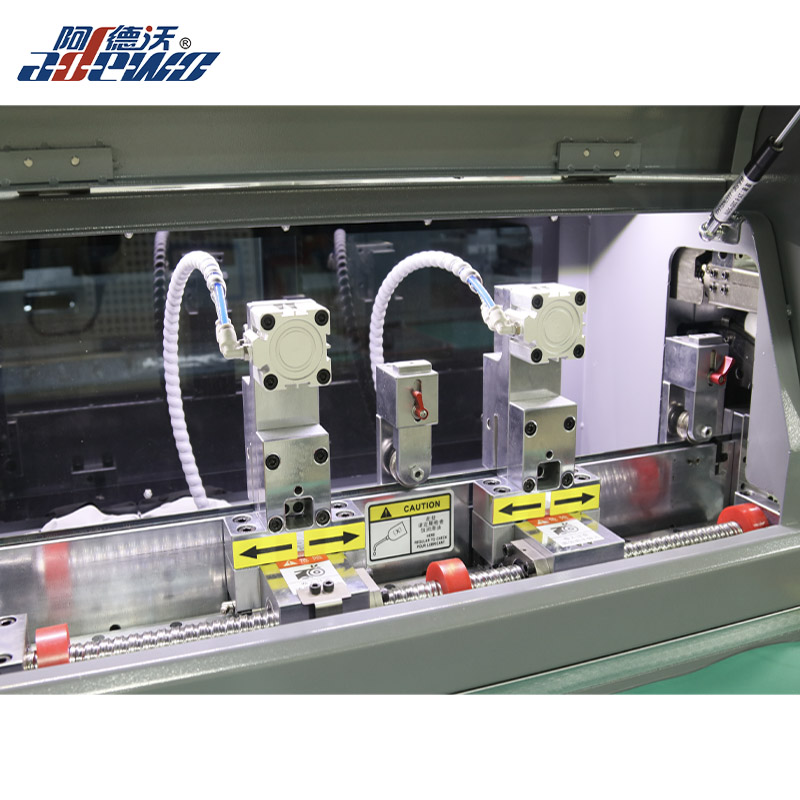

Picture of (ABM-832C3)Multi-Functions Label Rule Auto Bender Machine for reference:
1. Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2. New design of final cutting,flatness adjustable of cutting rule, good cutting effect of flat cut.

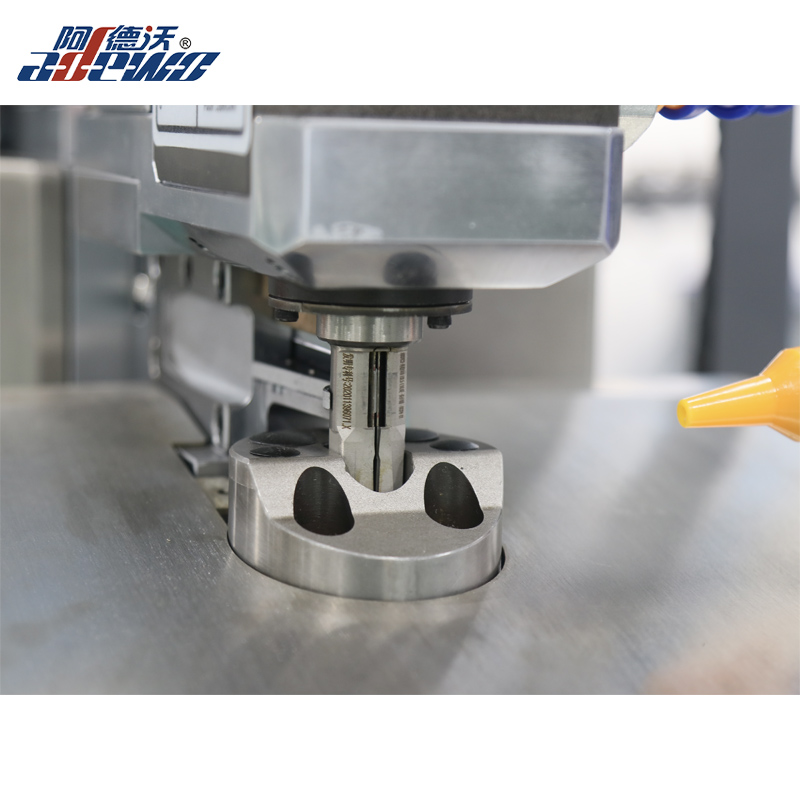

3. New structure of punch tool, easy to solve the problem of rule stuck.
4. Multi-Punch tool:including Lipping,Mold Cut,Bridge,Hole or Perforation, independent tooleasy to replace.

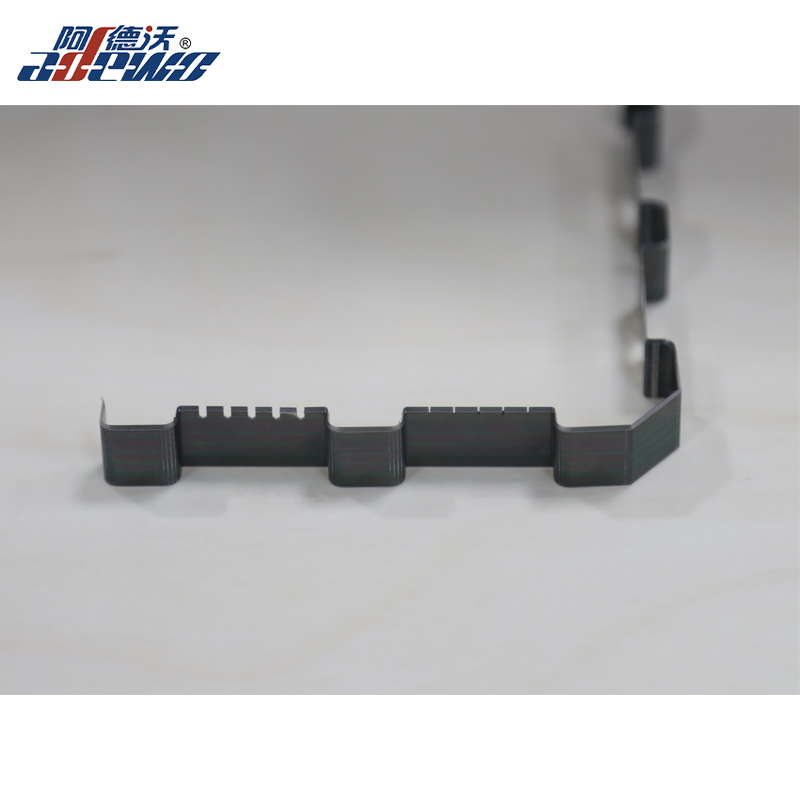

5. Multi-Broaching&Nicking for choice,wide and narrow broaching, suitable for high end diemaking.
6. Double clamps,screw guide feeding continuously, improves work efficiency.
|
Supported rule thickness(mm) |
0.45mm(1pt) |
|
Supported rule height(mm) |
8-12mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
| Max. Bending Angle | 100° |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Functions |
Broaching,Bending,Bridge,Lipping,Cutting |
|
Optional function |
Broaching,Nicking,Perforation,Hole |
| Broaching |
Single set Broaching/Double set Broaching can be selected (110 degree and 150 degree) |
|
Optimal pattern format |
DXF,DWG,CF2 |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
450KG |
|
Overall dimension |
2700x800x1650mm(LxWxH) |
|
H.S. Code |
8462230000 |
