ABM-860C2 High Steel Rule Auto Bending Machine with Broach included functions:Bending,Broaching,Bridge,Nicking,Perforation,Lipping and Mold Cut,Flat Cut. Supported steel rule thickness 0.71,105,1.42mm,height 23.80-60mm. China TP has two factories in China,specializing in developing and manufacturing die cutting equipments including CNC Laser Cutting Machine,Automatic Bender Machine, Creasing Cutting Machine and so on in Packaging Industry.
High Steel Rule Auto Bending Machine with Broach
As the professional manufacture, we would like to provide you High Steel Rule Auto Bending Machine with Broach. And we will offer you the best after-sale service and timely delivery.We do everything we can to add value to our customers' experiences, allowing us to be their best option.

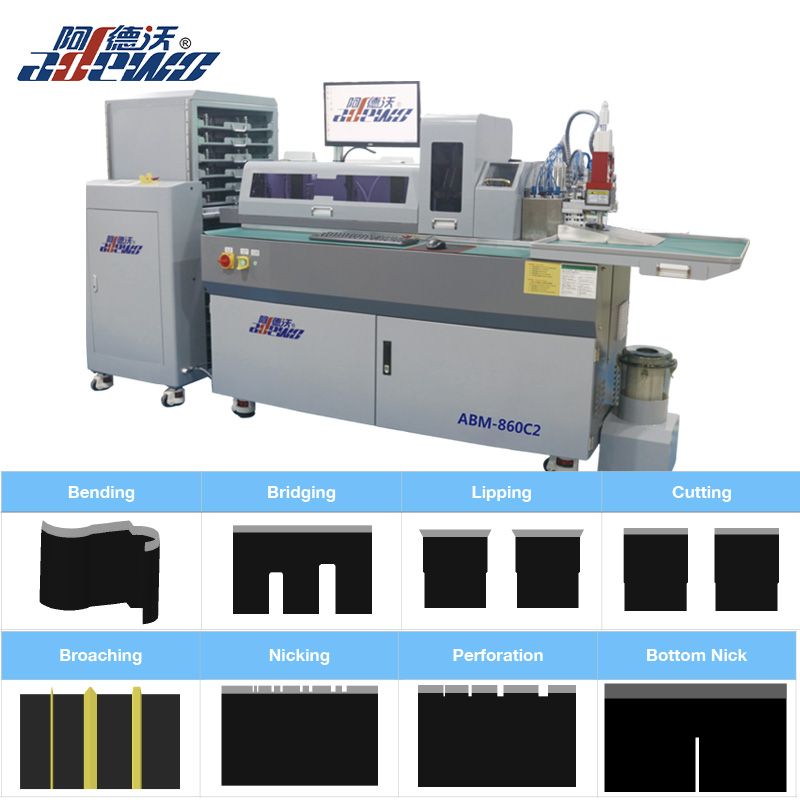

Picture of (ABM-860C2) High Steel Rule Auto Bending Machine with Broach for reference:
1.Bending and cutting in one,more safety of cutting.High efficiency of bending and cutting.
2.Bottom Nick function for choice,improves the flatness of die board.
3.Multi-Nicking size for choice,minimum 0.2mm, the width and depth can be setting through software.
4.Multi-Punch tool for choice:Lipping,Mold Cut,Bridge,Hole or Perforation,independent tool,easy to replace.
5.Multi--Broaching&Nicking for choice,wide and narrow broaching,suitable for high end die making.
6.Double clamps,screw quide feeding continuously,improves work efficiency.
7.Pro Model - 2pt&3pt in one, no need to replace bending tool for different thickness; flatness adjustable of different hardness cutting rule.
|
Supported rule thickness(mm) |
0.71,1.05,1.42mm (2pt&3pt&4pt) |
|
Supported rule height(mm) |
23.80-60mm |
|
Front Min. bending size |
1.5MM |
|
Back Min. cutting size |
1.0MM |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Basic Functions |
Bending,Bridge,Nicking,Lipping,Broaching,Mold Cut,Flat Cut |
|
Optional Functions |
Perforation/Hole,Cut Crease,Bottom Nick |
| Broaching Set | Single set Broaching/Double set Broaching |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
548KG |
|
Overall dimension |
3100x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of High Steel Rule Auto Bending Machine?
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com
5.Any spare tools are included of the High Steel Rule Auto Bending Machine?
Yes,the new order machine with free spare tools.
