ABM-832C2 High Accurate Steel Rule Auto Bender Machine included functions:Broaching,Bending,Bridge,Nicking,Perforation,Bottom Notch,Lipping and Cutting. Supported steel rule thickness 0.45,0.53,0.71,1.05mm,height 8-32mm. TP has been successful for many domestic and foreign die making&printing companies to provide advanced Auto Bender Machines, cost effective,technical support and excellent after sales service.
High Accurate Steel Rule Auto Bender Machine
As the professional manufacture, we would like to provide you high quality High Accurate Steel Rule Auto Bender Machine. Due to our focused approach, timely delivery and ethical business policy, we have been able to gain tremendous success in this domain.We enjoy a reputation of quality, ethics and service.

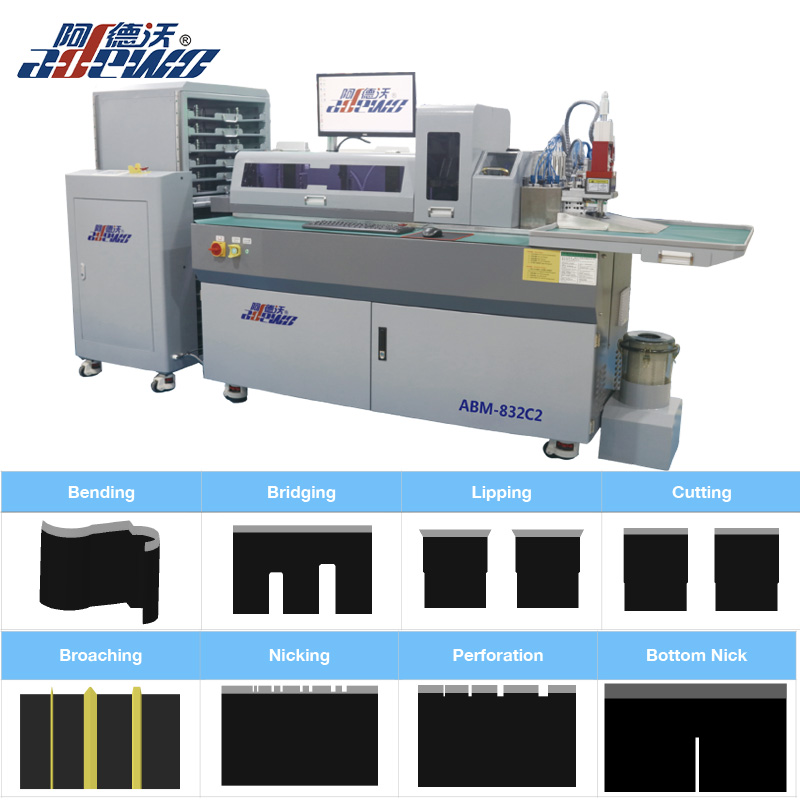

Picture of (ABM-832C2) High Accurate Steel Rule Auto Bender Machine for reference:
1.Bending and cutting in one,more safety of cutting. High efficiency of bending and cutting.
2.Bottom Nick function for choice,improves the flatness of die board.
3.Multi-Nicking size for choice, minimum 0.2mm, the width and depth can be setting through software.
4.Multi-Punch tool for choice:Lipping, Mold Cut, Bridge, Hole or Perforation, independent tool, easy to replace.
5.Multi-Broaching&Nicking for choice,wide and narrow broaching, suitable for high end die making.
6.Double clamps, screw guide feeding continuously, improves work efficiency.
7.Pro Model - 2pt&3pt in one, no need to replace bending tool for different thickness; flatness adjustable of different hardness cutting rule.
|
Supported rule thickness(mm) |
0.45, 0.53, 0.71, 1.05mm(1,1.5,2,3pt) |
|
Supported rule height(mm) |
8-32mm |
|
Bridge height |
15mm&18mm adjustable |
|
Bridge width |
Over 5mm any sizes available.(Can be customized) |
|
Front Min. bending size |
1.5mm |
|
Back Min. cutting size |
1.0mm |
|
Feeding precision |
±0.03mm |
|
Bending flatness |
0.2mm |
|
Functions |
Broaching,Bending,Bridge,Perforation,Nicking, Bottom Nick,Lipping Cutting |
|
Cutting methods |
Bend Cut |
|
Optimal pattern format |
DXF,DWG |
|
Air supply |
0.4-0.8MPa |
|
Power supply |
Single Phase AC220V,13.6A,50-60Hz |
|
Machine total power |
3KW |
|
Weight |
548KG |
|
Overall dimension |
3100x800x1600mm(LxWxH) |
|
H.S. Code |
8462230000 |
1.What’s price term?
(1)FOB Shenzhen China
(2)CIF
(3)DDP
2. What’s payment term?
30% T/T as down payment, 70% T/T before delivery.
3.What about lead time?
7-10 working days.
4.How about installation and training of High Accurate Steel Rule Auto Bender Machine
English software, installation, related training user manual and videos are available for end-users.
We provide remote support to customers all over the world.
Our technical service is always available at sale@tempestmachinery.com
5.Any spare tools are included of the High Accurate Steel Rule Auto Bender Machine?
Yes,the new order machine with free spare tools.
